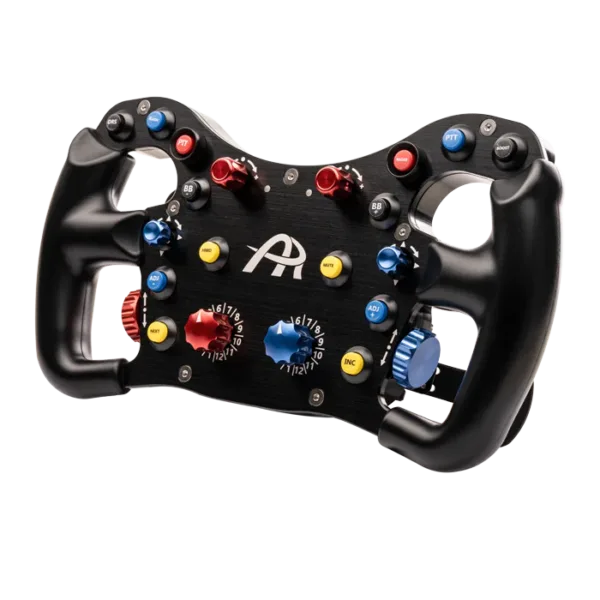

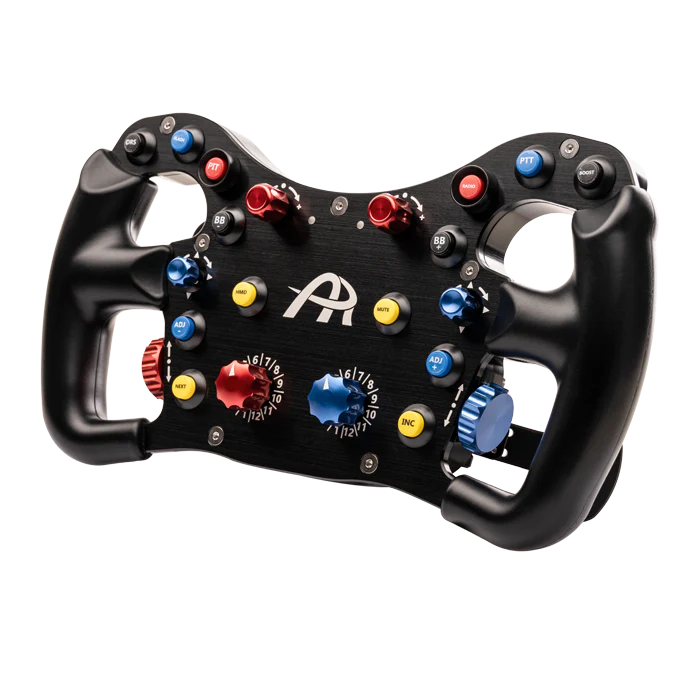

Ascher Racing Steering Wheel F64 V3

Specifications

• 285 mm wheel diameter
• 6 x 70 mm bolt pattern
• Spacer may be required for wheelbase clearance
• M5 x 12 mm stainless screws for QR mounting included

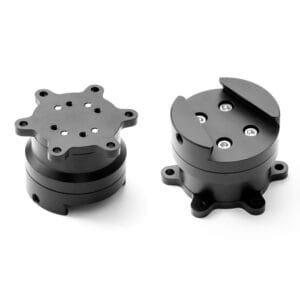

• Quick Release not included
• To mount M5 threaded QRs, use captive screws
• Mass: 1140 g

F64-SC V3 (Wireless | Simucube 2):

• Compatible exclusively with Simucube wheelbases
• Wireless connection to Simucube 2
• Simucube 1 requires additional receiver module
• Low latency
• Low energy consumption: 2-3 years of battery life on heavy daily usage
• Standard 14250 Lithium battery for maximum capacity
• Easy to swap battery via back side access window
• Button inputs via Simucube – no additional Windows controller
• Hot swapping wheels in-game without reconfiguring inputs
• Maximum signal quality via external stub antenna

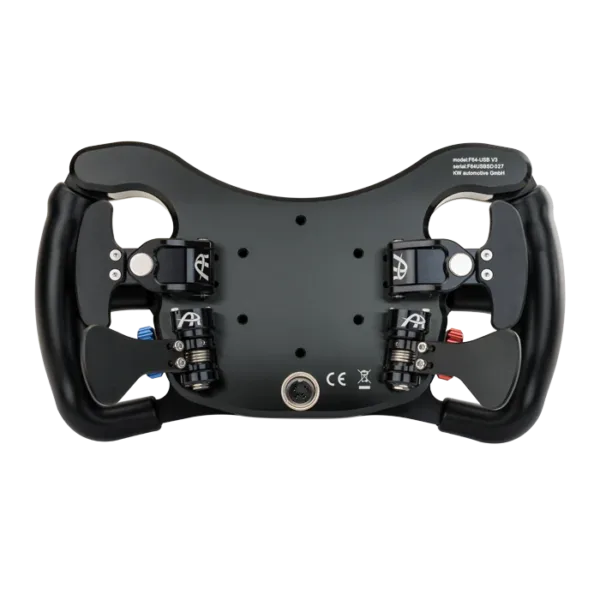

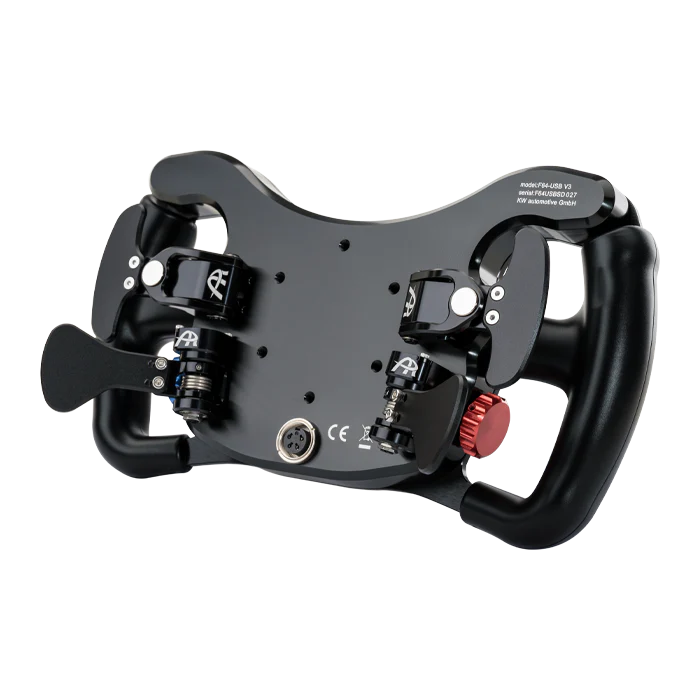

F64-USB V3 (Wired):

• Platform-independent USB connection
• Shielded coiled cable with industrial-grade Binder M16 connector
• Cable connector length: approx. 64 mm

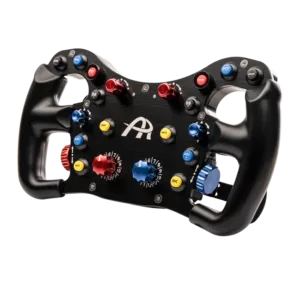

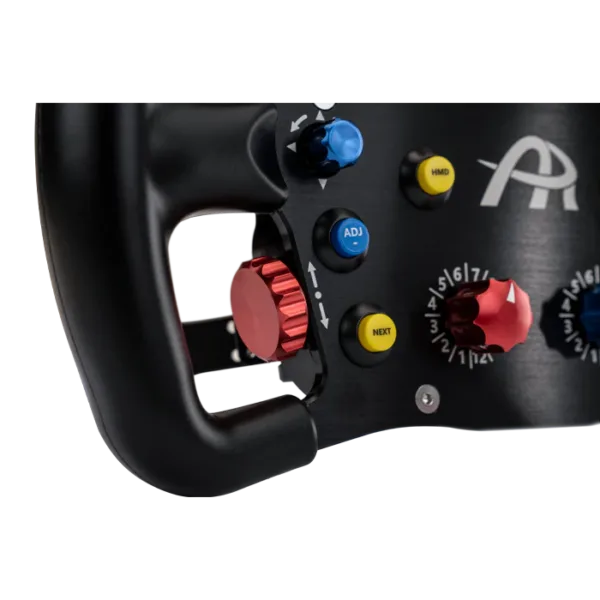

64 Inputs

• 14 x push buttons with positive tactile feeling
• 2 x protective button guards

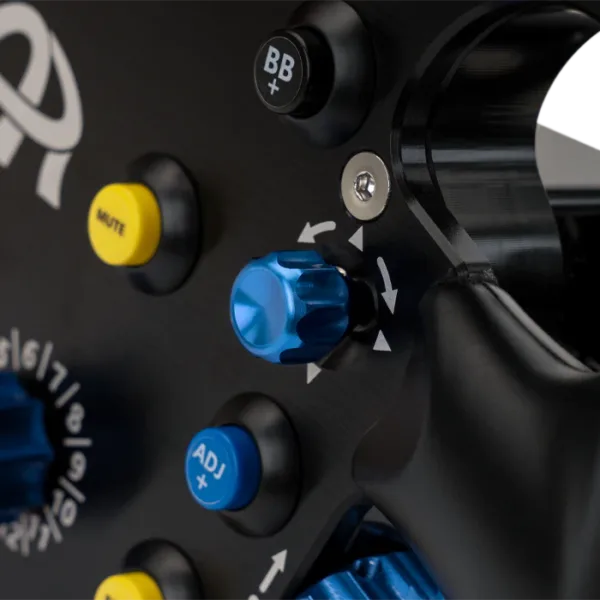

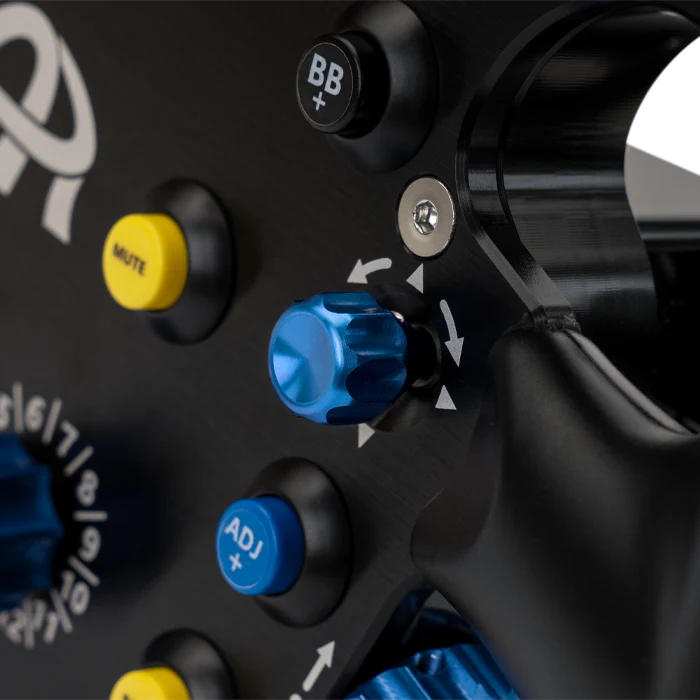

• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x encoders inc. push button functionality, aluminium knob
• 2 x 12-position rotary switches, aluminium knob

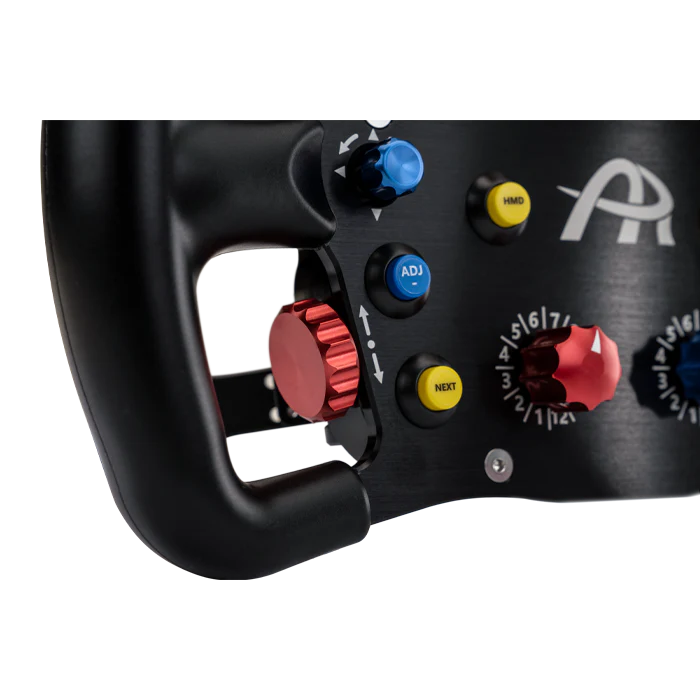

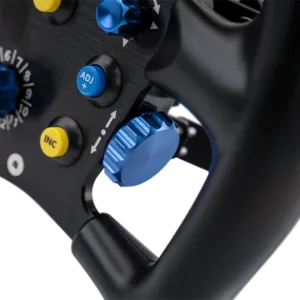

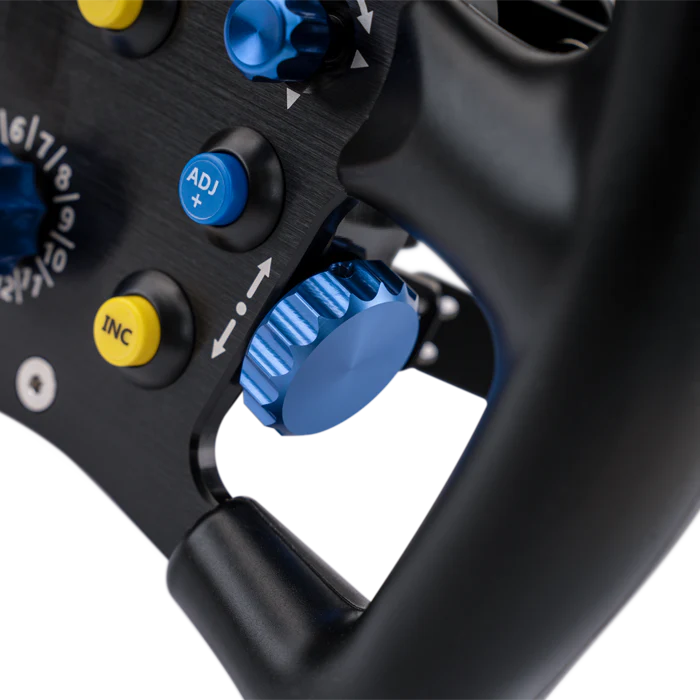

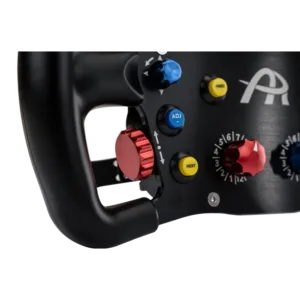

• 2 x thumb encoders
• 2 x paddle shifters
• 2 x motorsport clutch paddles with electronic bite-point calibration

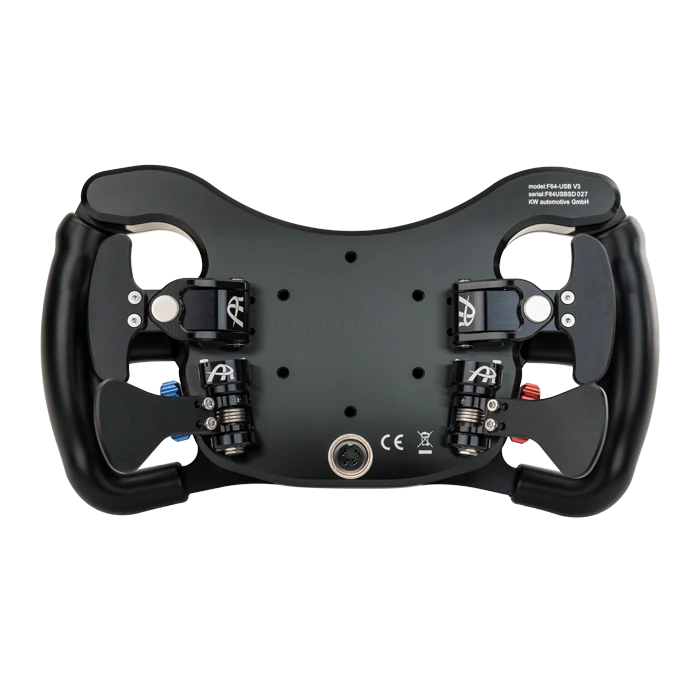

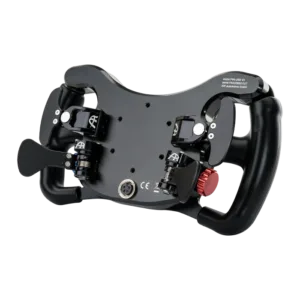

Magnetic Paddle Shifters

• CNC machined and anodized out of automotive aluminium
• Strong snap-action force
• Alternative magnets to reduce force included
• Reliable automotive switch

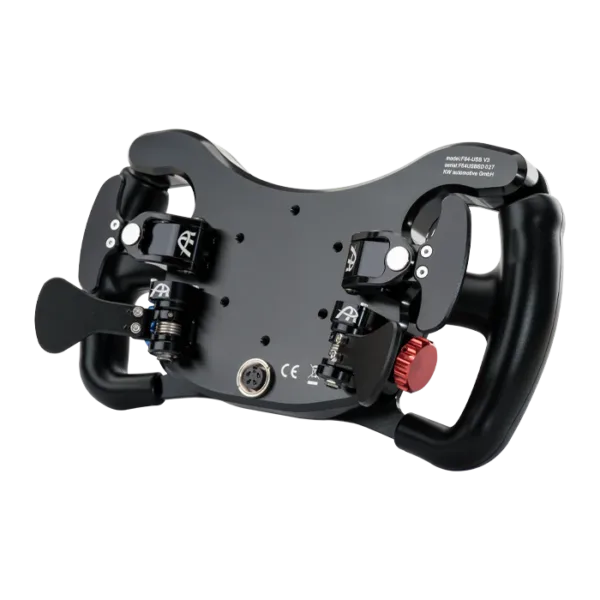

Contactless Clutch Paddles

• contactless, on-axis hall sensor for linear & unlimited operation
• precise and repeatable driver input
• waterproof, shock resistant, wide temperature range
• smooth operation due to pre-tensioned ball bearing design
• designed for harsh real racing environment
• precision cnc machined aluminium design
• market leading compact design

Electronic Bite-Point Calibration

• Precise adjustments in 1.0 % and 0.1 % increments
• Change bite-point via configuration tool or directly on the wheel rim:
  1. push both joystick buttons for 1s to acces bite-point mode
  2. LED lights up to indicate calibration mode
  3. rotate left joystick for 1.0 % increments / right joystick for 0.1 % increments (LED flashes to indicate changes)
  4. exit calibration mode by pushing both joysticks again for 1s
• Recommended procedure for finding best setting:
  1. enter calibration mode and set bite-point to high value, e.g. 80 %
  2. pull slave clutch only
  3. apply throttle
  4. reduce bite-point in 1.0 % increments (left joystick) until vehicle starts moving
  5. make test starts to fine tune desired bite-point setting
  6. exit bite-point calibration mode
• Recommended procedure for quick race starts
  1. pull both master and slave clutches
  2. apply throttle
  3. race start -> let master clutch snap
  4. it will take less than 20 ms to reach desired bite-point
  5. slowly release slave clutch

Button Labels

• 50 pcs button labels each black and white
• 72 pcs encoder labels (blue, green, red, black, yellow, white)
• Labels for various common steering wheel inputs

High Quality Finish

• Maximum grip level from closed, ergonomic rubber grips
• Machined out of automitive aluminium
• Black anodized and laser engraved
• Brushed frontplate surface finish
• Glass bed blasted paddle surface finish
