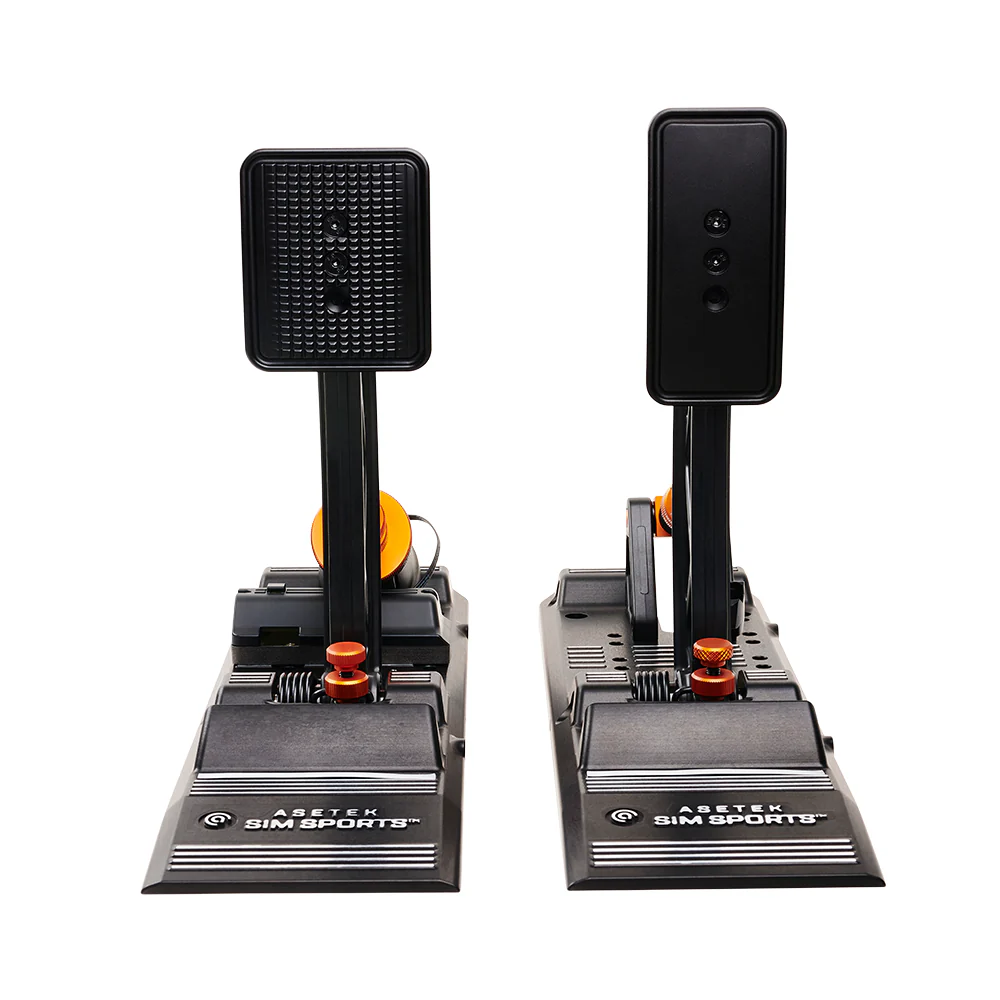

Asetek SimSports S Series Invicta Sim Racing Pedals – Brake & Throttle (Split Set)
22 people are viewing this product right now
$979.99
Estimated delivery:9 days
Guarantee Safe and Secure Payment Checkout
Product Details
About This Product

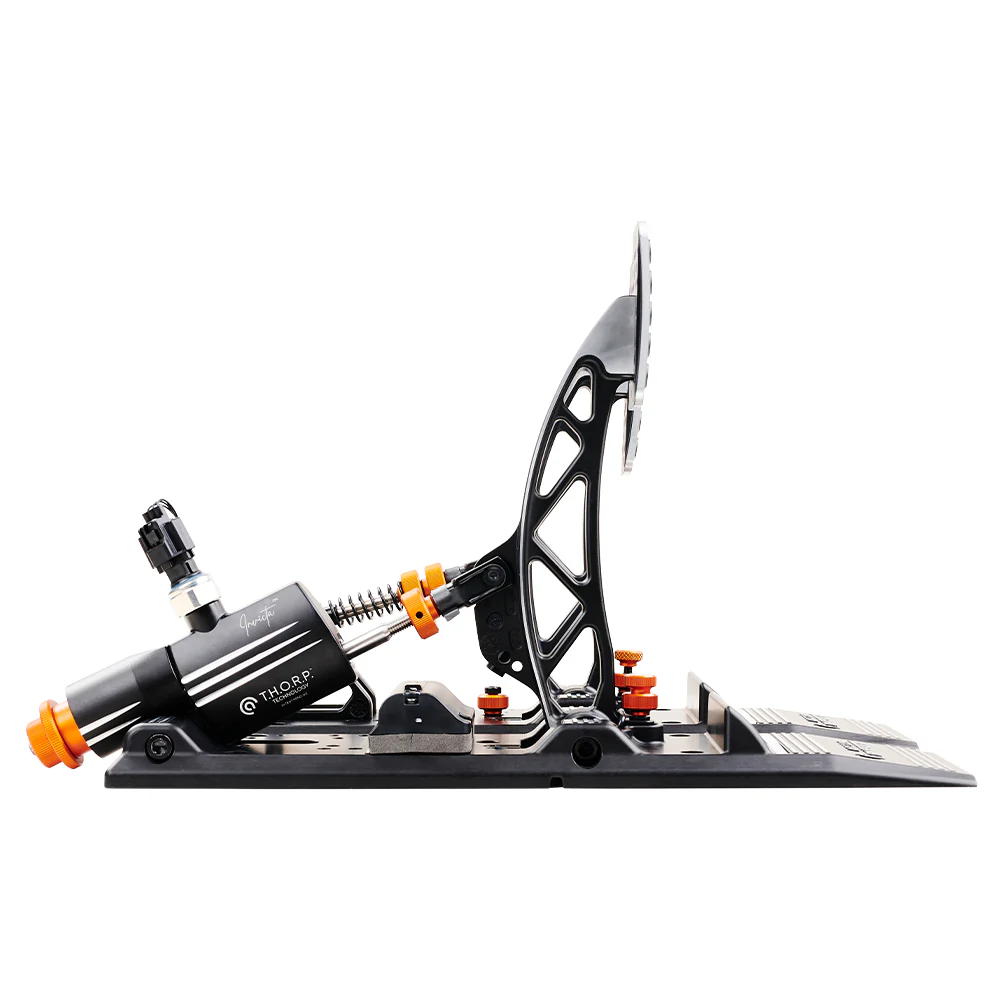

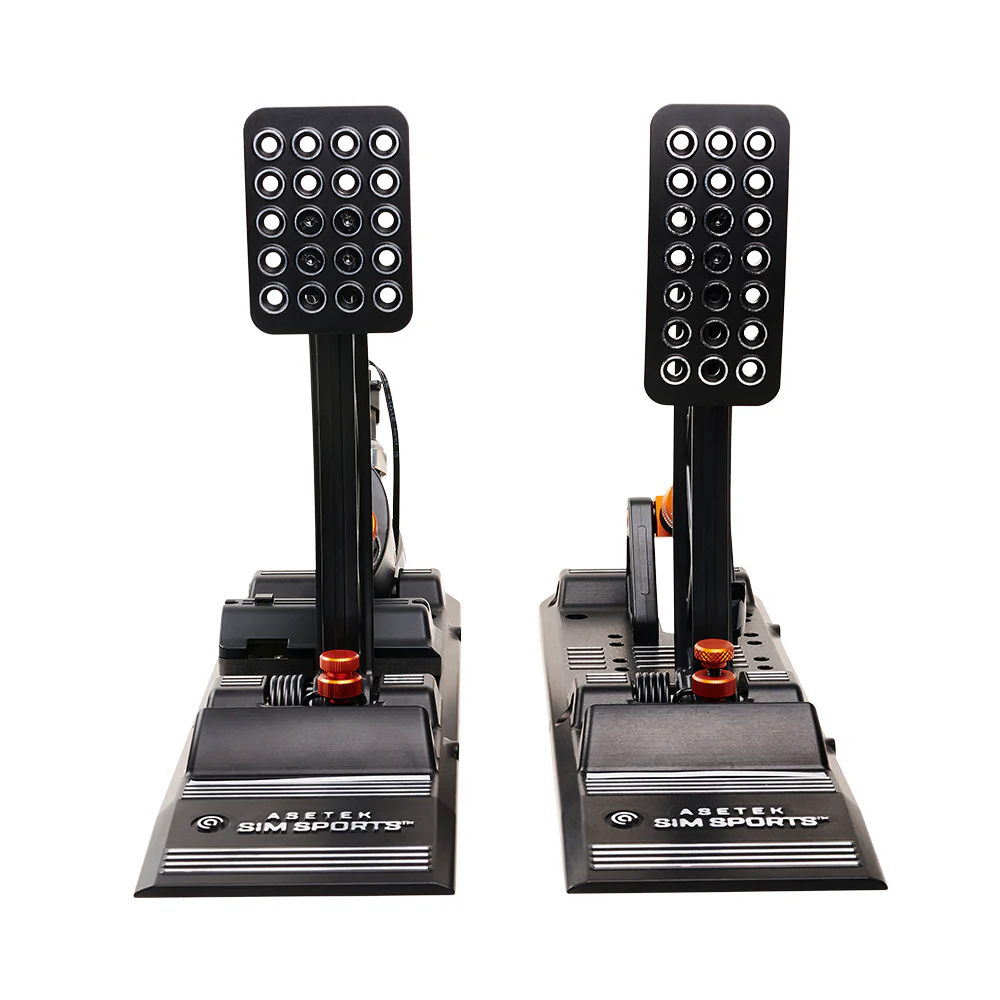

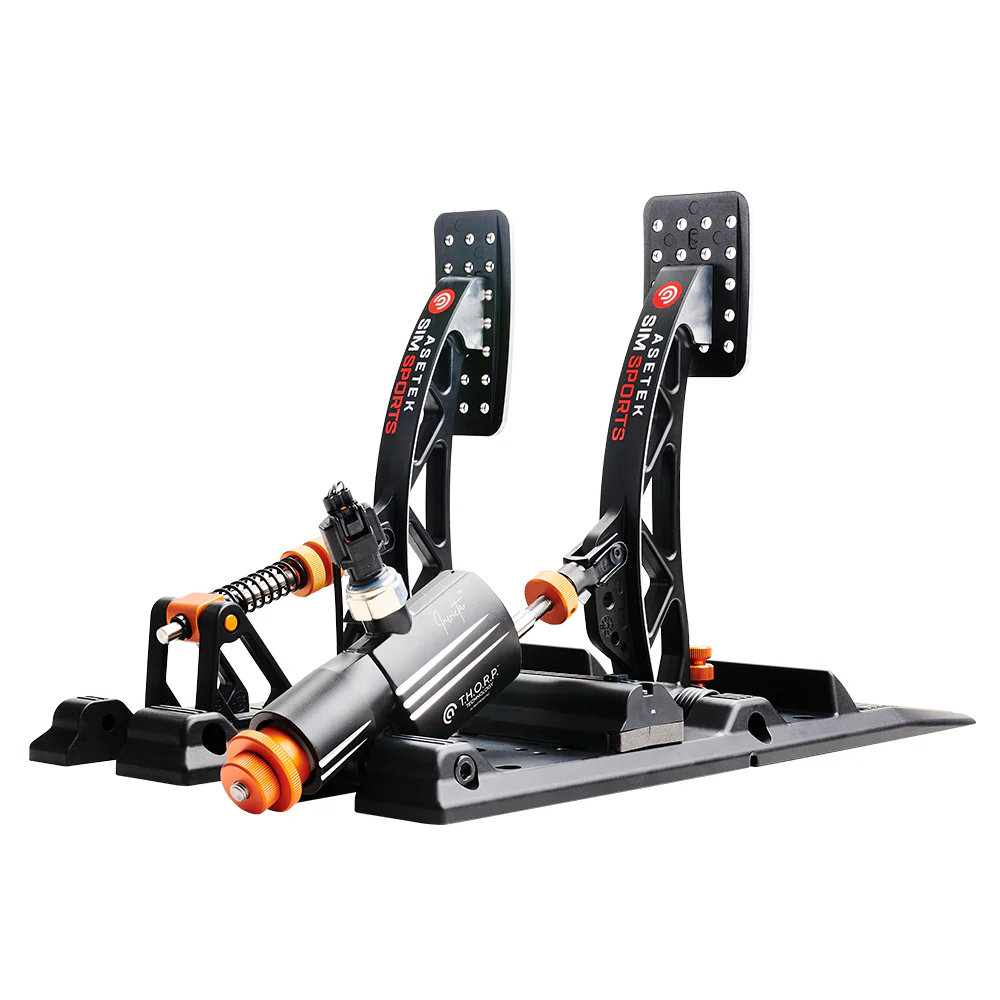

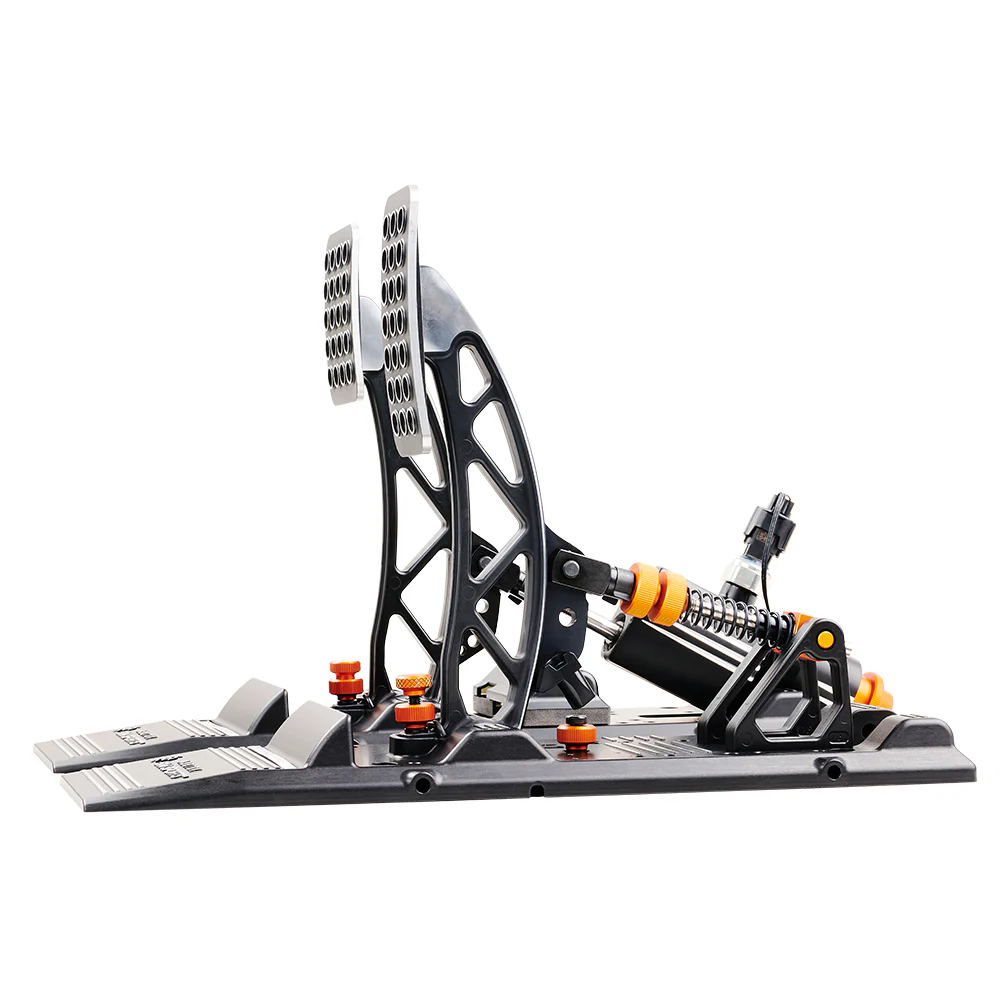

The Invicta S Series Brake and Throttle are the Invicta Sim Racing Brake and Throttle, as you know them – just separated.
The Asetek Invicta™ Sim Racing Pedals bring an authentic racing feel to your sim setup with a hydraulic brake system that mimics real-life braking, empowering you to perform like a professional racer.
The Invicta™ Sim Racing Pedals by Asetek SimSports are meticulously crafted to offer the ultimate in racing realism. With a hydraulic brake system, these pedals replicate the compression and resistance of a real race car brake, immersing you in an authentic driving experience. The pedals are built for durability, ensuring consistent performance and a reliable, tactile feel that stays precise even under intense use.
A standout feature is the hard brake pedal with minimal travel, designed to enhance muscle memory for precision braking. This setup allows you to push the brake to full power almost instantly, giving you the split-second advantage needed to brake later and enter turns with optimal speed. The reduced travel distance not only helps with faster lap times but also provides the consistent pedal feel essential for developing precision and control. Compatible with additional elastomers, the pedals allow for easy customization, so you can adjust the resistance to suit your preferred level of firmness. This refined system supports your natural muscle memory, helping you refine your technique and master the art of trail braking.

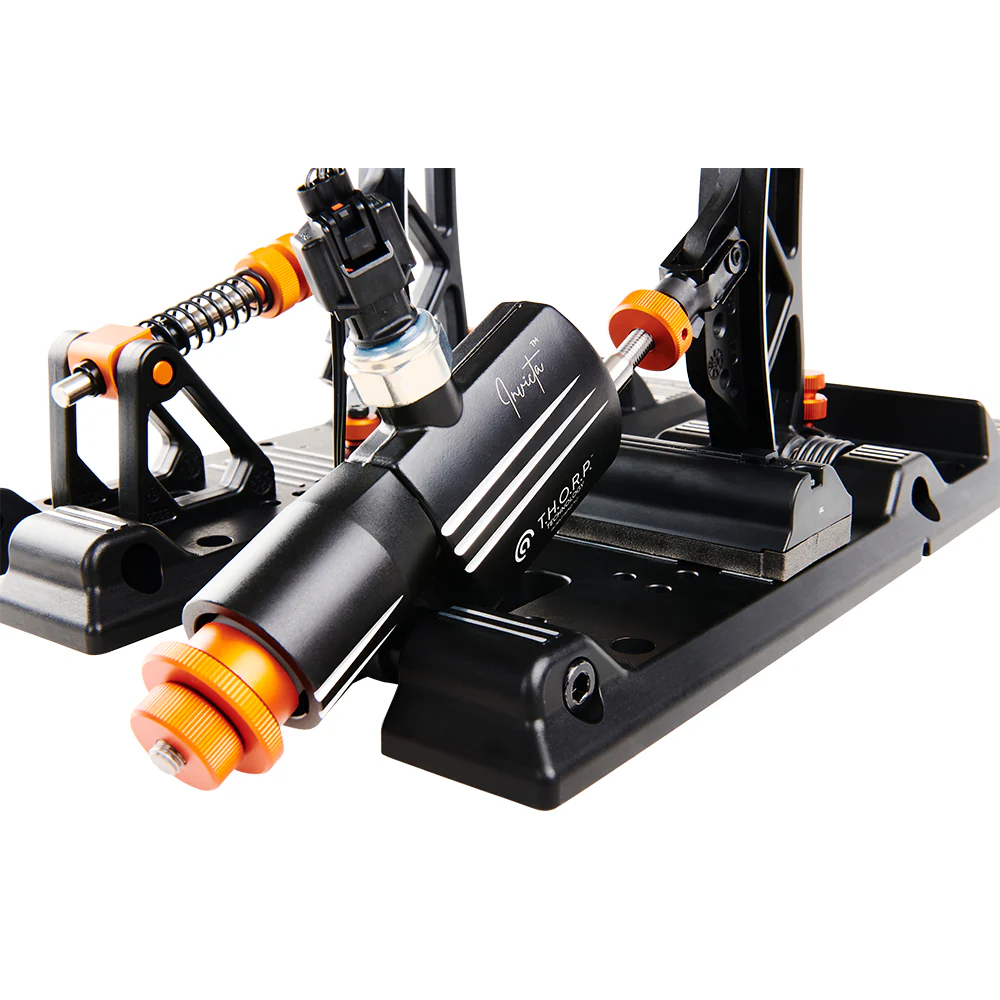

The T.H.O.R.P.™ System

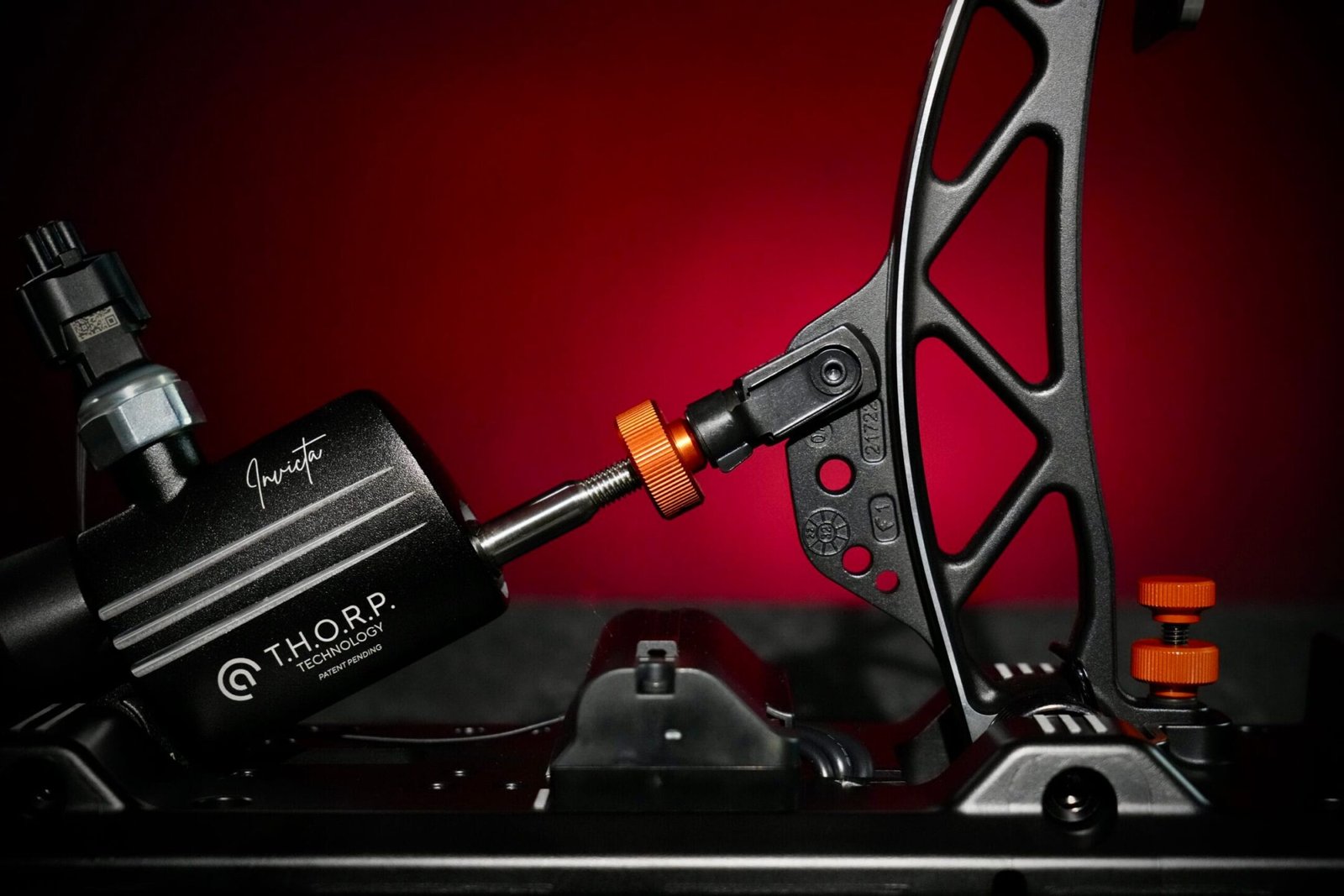

The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) System in Asetek SimSports’ pedals is engineered to deliver a realistic race car braking experience through a hydraulic brake cylinder with an automotive-grade pressure sensor. This advanced system replicates the feel of real braking stages: the soft stage and the hard stage.
Soft Stage: The pedal initially travels 20-25 mm, compressing an elastomer that mimics the feel of calipers engaging brake pads. Various elastomers let you adjust pedal resistance for a customized feel.
Hard Stage: Once the pedal hits the mechanical stop, the sensation mirrors pressing against brake fluid in a real car, providing a hard, uncompromising brake feel. Capable of achieving up to 100 bar pressure—similar to an F1 car—the T.H.O.R.P. System offers authentic, race-grade feedback.
Design and Features Video
Comparing Asetek SimSports Pedals
General Tech
- Exquisite, radical, and minimalistic industrial Danish design
- Adjustable pedal stops
- Adjustable travel settings
- All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
- Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
- Adjustable pedal plates that can be moved along the x- and y-axis
- Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- Each pedal can be calibrated through the intuitive and easy to use RaceHub software
- Pedal upper and lower dead zones can be set through the RaceHub software
- All adjustable mechanical features are by default colored Orange
- Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
- Optional to purchase smooth sock-friendly pedal plates (coming later) Easy to add Clutch pedal to the Throttle & Brake combo
- Made in Denmark
- Sustainable manufacturing with 100% on-site re-use of waste material
- Designed and tested to 1,000,000 activations, which far exceeds any race car specification

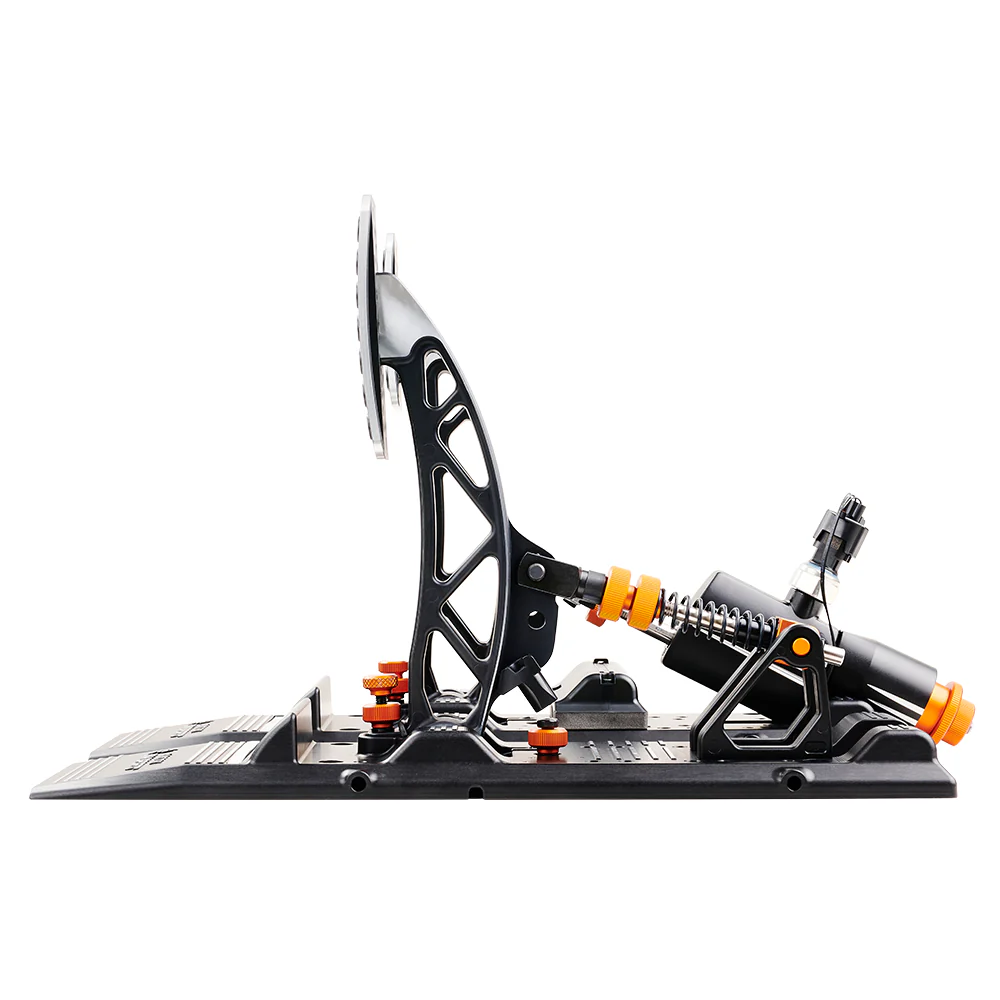

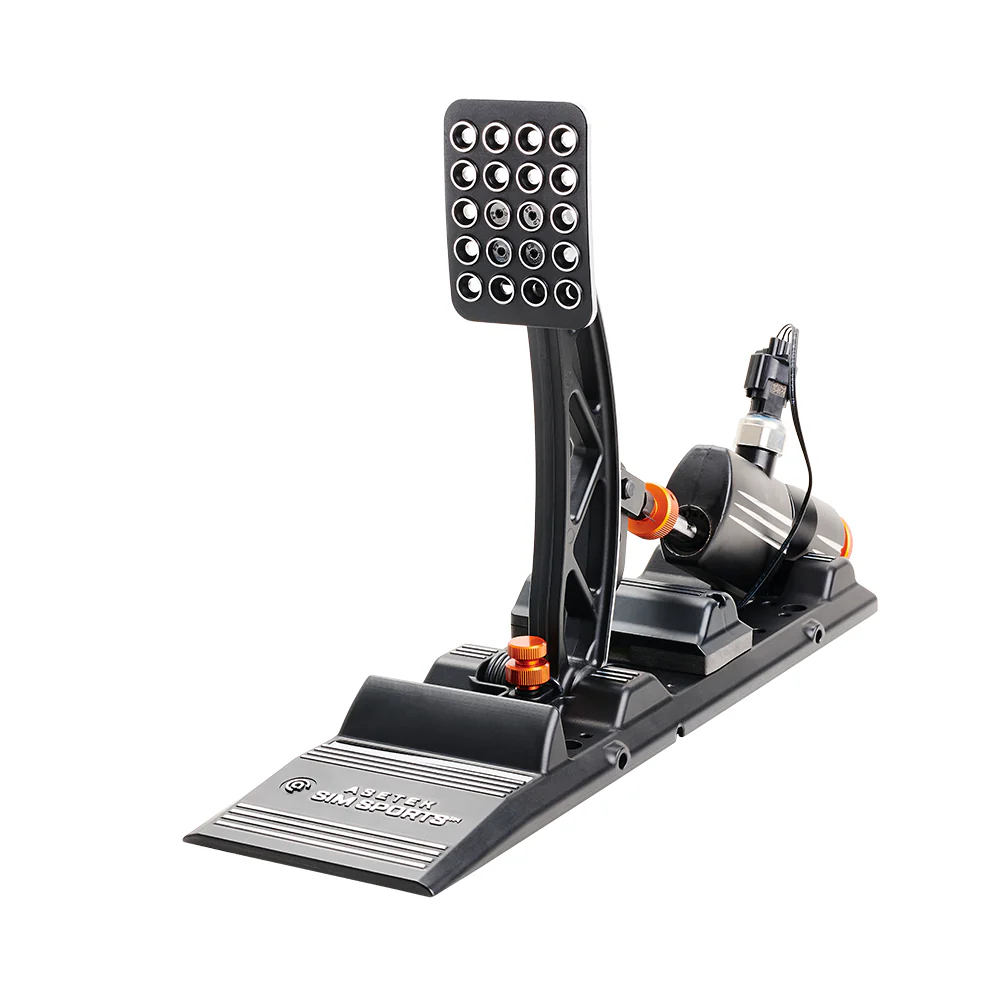

Brake System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
- Automotive-grade pressure sensor
- The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect race car feel as well as not overloading the elastomer
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
- 100 bar of pressure equals 180 kg of force on the face of the pedal plate
- Hydraulic Brake Cylinder made from forged aluminum
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

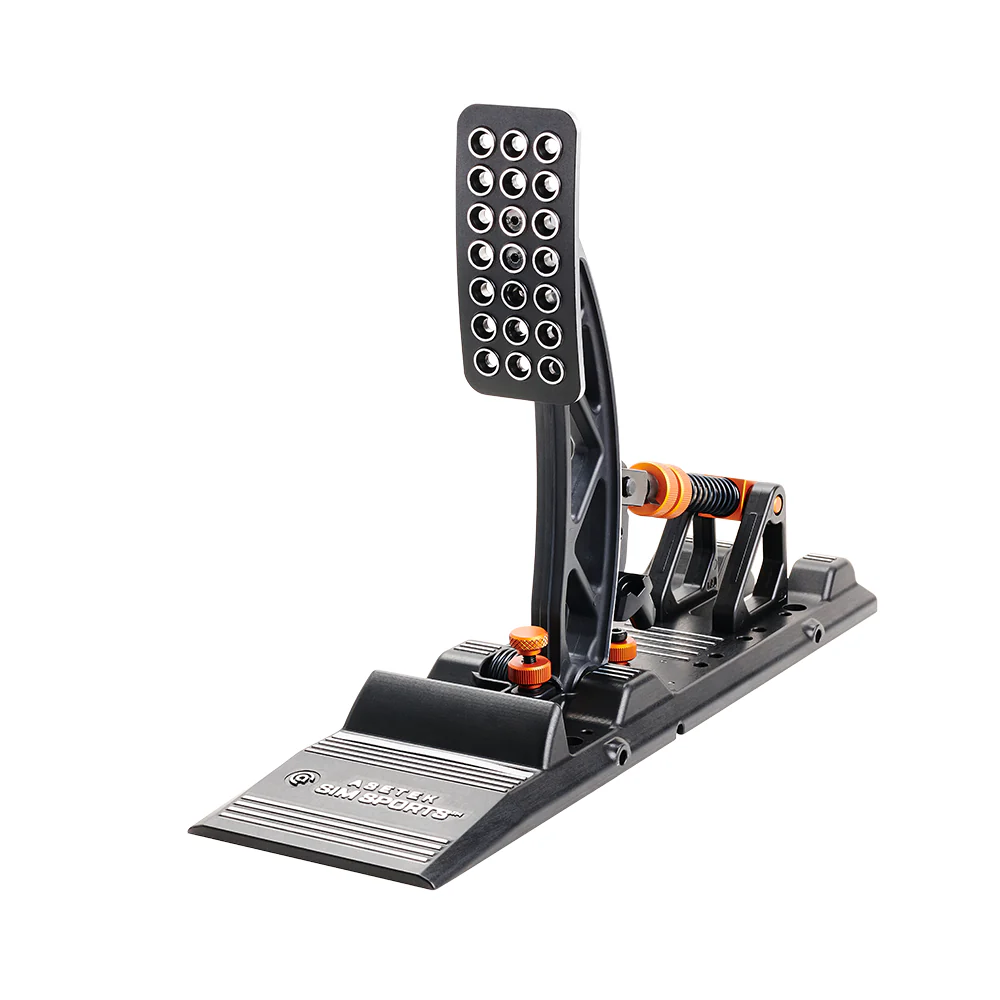

Throttle System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material
- 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
- Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real race car butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness
- Adjustable pedal travel
- Adjustable pedal stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Dimensions
- Depth, width, and height: 457 mm x 212 mm x 256 mm
- Weight: 3 kg
Compatibility
- Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing’s Aluminum Pedal Tray & Adjustable Heel Rest.
- PC
- Platforms: Windows 10, 11
- Console support planned in the future
- Games
- Assetto Corsa
- Assetto Corsa Competizione
- DiRT Rally
- DiRT Rally 2.0
- F1 Series
- iRacing
- Project Cars 2
- rFactor 2
- And many more (all games that accept direct input devices)
