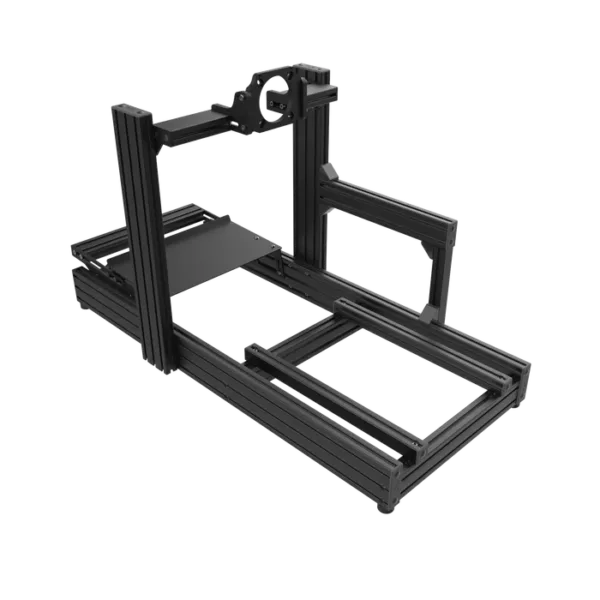

ASR 4 – “Open Face” Extruded Aluminum Profile (Generation 2)

Generation 2 Improvements & Changes

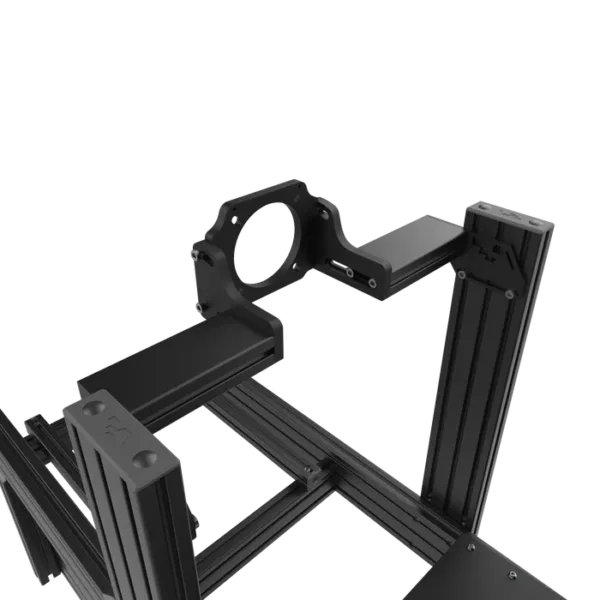

• Brand new wheel deck design that offers even more flexibility and adjustability for the position of your wheelbase.
• Brand new New Generation 2 Aluminum Pedal Tray & Heel Rest design which allows for industry-leading compatibility and maximum adjustability for the position of your pedals.
• Now available (as an option) with Advanced SimRacing Pro Wheel Deck for market-leading adjustability on your wheelbase and wheel position and angle.
• Featuring our classic “Open Face” Extruded Aluminum Profile
• Completely overhauled assembly and design principles that allow for a much faster build involving less parts and most importantly, optimized stability and rigidity for the entire chassis.
• Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability on this high-end chassis.

Description

• The ASR 4 is Advanced high-end SimRacing chassis with a 4.5″ aluminum base and reinforced steering column.
• Its 4.5″ aluminum base will give you more height and stability, ensuring optimal performance from the most powerful SimRacing peripherals.
• Zero flex and no weak points design philosophy.
• The ASR 4 is available in Matte Black (Powder Coat). Advanced SimRacing proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Made from top-grade alloy Aluminum sourced in the United States of America
• Produced and packaged in Canada with the utmost care and attention.
• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.

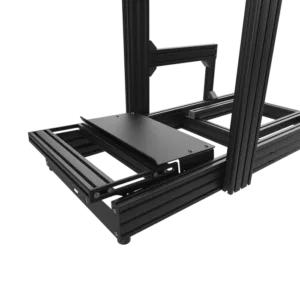

• The included pedal plate is fully adjustable in height, angle, and mounting position on the chassis to help you achieve a comfortable position.

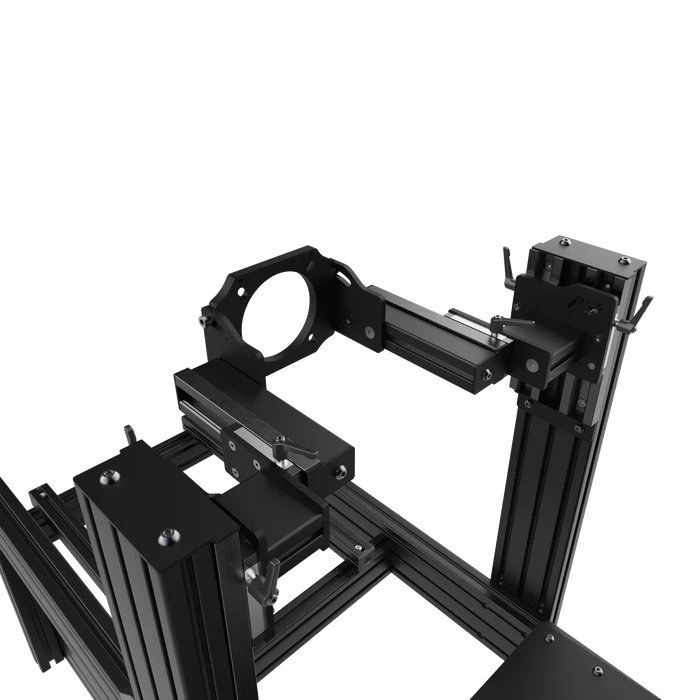

• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• Chassis size and format is adequate for most builds and heights (Up to 6’6″ or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)

Four Wheel Deck options available:

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
• Fanatec Side Mount (Compatible with all modern Fanatec Products)
• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
• Asetek Front Mount (Exclusively for Asetek Wheelbases)

You now have the option to select your Wheel Deck Adjustability

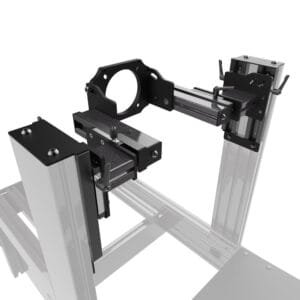

• Classic Wheel Deck

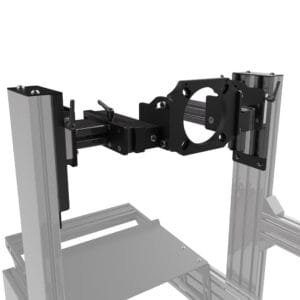

• Pro Wheel Deck (Inspired by our flagship ASR Pro Chassis)

Specifications

• Base composition : 4.5″ x 1.5″
• Steering column composition : 4.5″ x 1.5″
• Base length : 50″
• Base width : 22″
• Chassis height from rubber feet to tip of the steering column : 29″
• Weight when assembled (w/o accessories): 116lbs.

What’s Included?

Box 1 (Aluminum)

• 1 x Aluminum profile 50″ x 4.5″ x 1.5″
• 1 x Aluminum profile 28″ x 4.5″ x 1.5″
• 1 x Aluminum profile 19″ x 3″ x 1.5″
• 1 x Aluminum profile 18.5″ x 3″ x 1.5″
• 1 x Aluminum profile 18″ x 3″ x 1.5″
• 1 x Aluminum profile 13″ x 1.5″ x 1.5″
• 1 x ASR Front Plate

Box 2 (Aluminum)

• 1 x Aluminum profile 50″ x 4.5″ x 1.5″
• 1 x Aluminum profile 28″ x 4.5″ x 1.5″
• 1 x Aluminum profile 19″ x 3″ x 1.5″
• 1 x Aluminum profile 18.5″ x 3″ x 1.5″
• 2 x Aluminum profile 22″ x 1.5″ x 1.5″

Box 3 (Hardware & Pedal Tray)

• 2X Pedal Tray side brackets
• Left and Right Heel Rest Side Brackets
• Heel Rest Plate
• 8 x Corner Gussets and Plastic Caps
• 22x M8 Screws (35mm)
• 4 x M8 Screws (25mm)
• 22 x M8 Screws (16mm)
• 12 x M8 Screws (12mm)
• 4 x M8 locknuts
• 36 x M8 T-Nuts
• Endcaps
• 5 x 1.5″ Endcaps
• 1 x 3″ Endcaps
• 4 x 4.5″ Endcaps
• 8 x Pushcaps
• 16 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Nuts

Box 4 (Classic Wheel Deck Variant)

• Common content
  • 8 x Flathead screws (16mm)
  • 2 x Aluminum profile 6 7/8″ x 3″ x 1.5″
  • 2 x wheel deck brackets
  • *Depending on configuration, one set of the following is included*

• Standard Wheel Deck Content
  • Standard Steel Plate
  • 2 x 3″ endcaps
  • 4 x pushpins

• Fanatec Side Mount Content
  • 2 x DD side brackets (L & R)
  • 2 x CSL DD spacers
  • 4 x M8 Screws (16mm)
  • 4 x M8 Screws (20mm)

• Simucube Front Mount
  • 2 x DD side brackets (L & R)
  • 1 x Front Mount Plate
  • 4 x M8 screws (16mm)
  • 4 x M8 screws (20mm)

• Asetek Front Mount
  • 2 x DD side brackets (L & R)
  • 1 x Asetek Mount Plate
  • 4 x M8 screws (16mm)
  • 4 x M8 screws (20mm)

Box 4 (Pro Wheel Deck Variant)

• 6 x Linear guide track
• 6 x linear guide bearing
• 2 x 2 7/8″ x 3″ x 1.5″ extrusion
• 2 x 8″ x 1.5″ x 1.5″ extrusion
• 2 x lower vertical stopper plate
• 2 x upper vertical stopper plate
• 2 x dual bearing plate
• 2 x single bearing plate
• 4 x horizontal stopper plate
• 2 x DD side plate
• 1 x front mount plate
• 12 x M8 button head screws (12mm)
• 8 x M5 screws (16mm)
• 6 x M5 Flat Head Screws (12mm)
• 12 x M8 Flat Head Screws (16mm)

Compatibility

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10
• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Asetek (Front Mount)

• All Asetek Wheel base

Simucube & MiGE Motor (Front Mount)

• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases

Aluminum Pedal Deck & Heel Rest

• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• Fanatec ClubSport V3
• Fanatec CSL
• Fanatec CSL Elite
• Not compatible with the CSR Pedals
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Logitech products
• Simtrecs ProPedal GT
• Simagic P1000 & P2000 & Inverted Versions
• Heusinkveld
• MECA Cup1
• MECA EVO1
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
• And many more (please inquire directly with us for specific pedal sets)

Downloads

• The ASR 4 – “Open Face” Extruded Aluminum Profile (Generation 2) assembly guide
• The Pro Wheel Deck assembly guide
