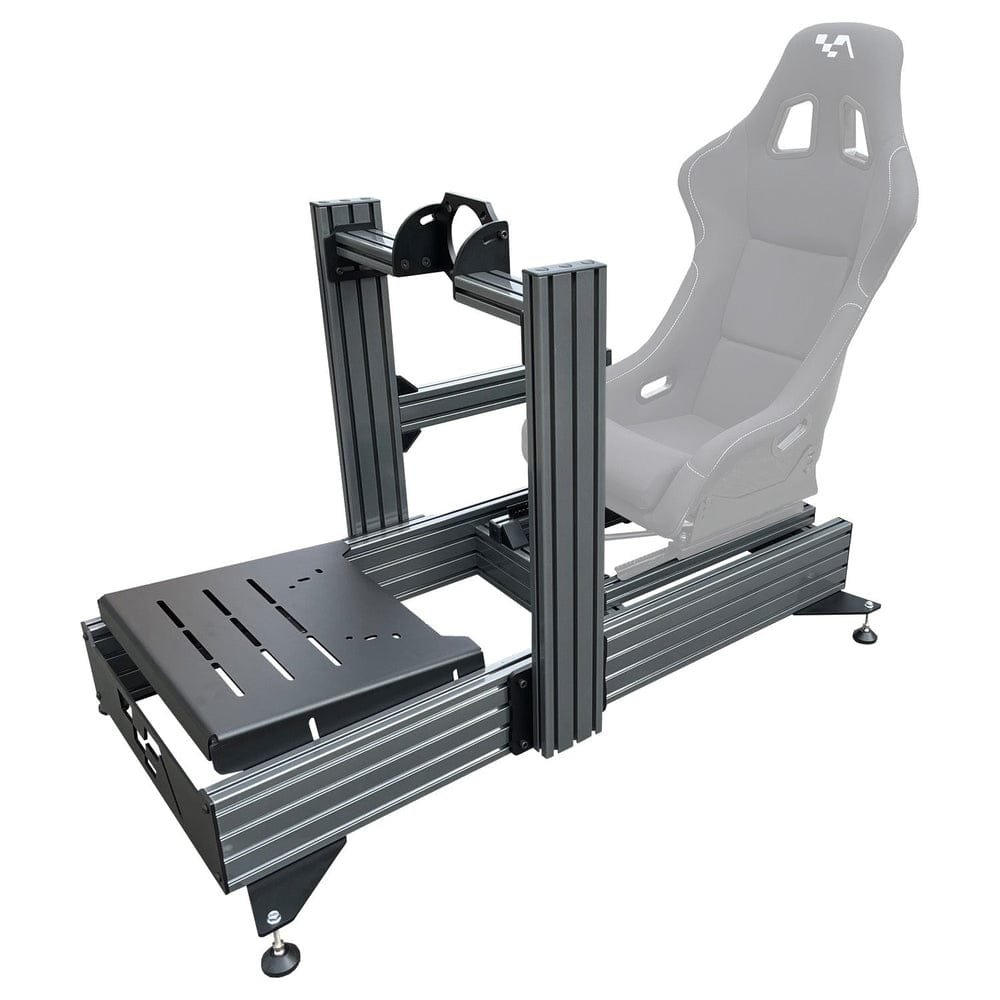

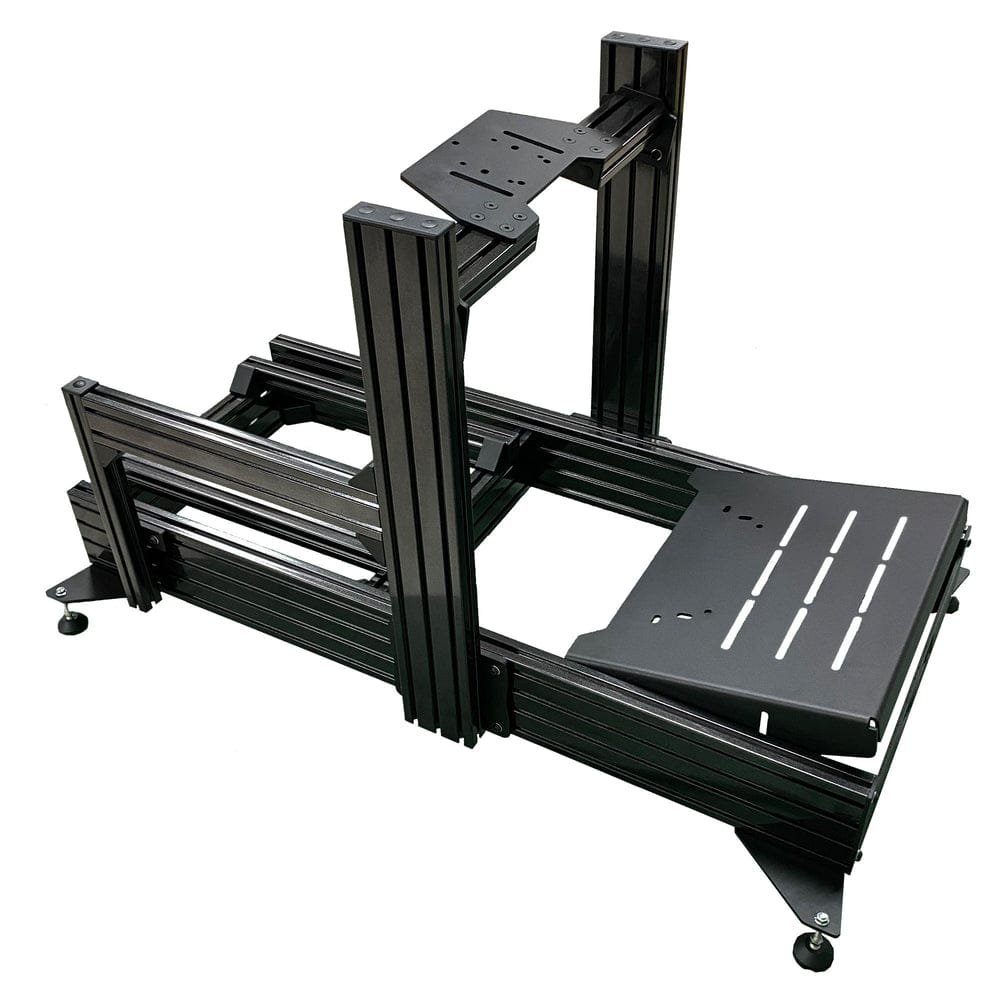

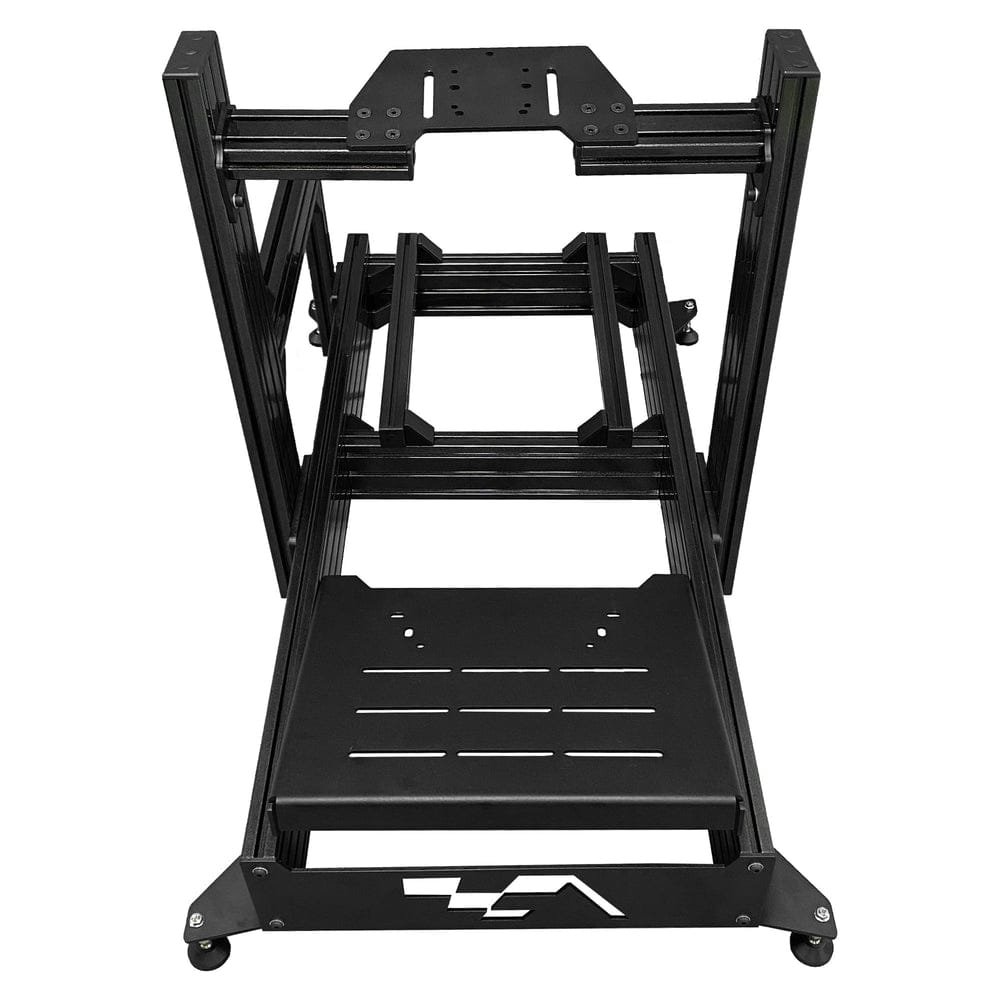

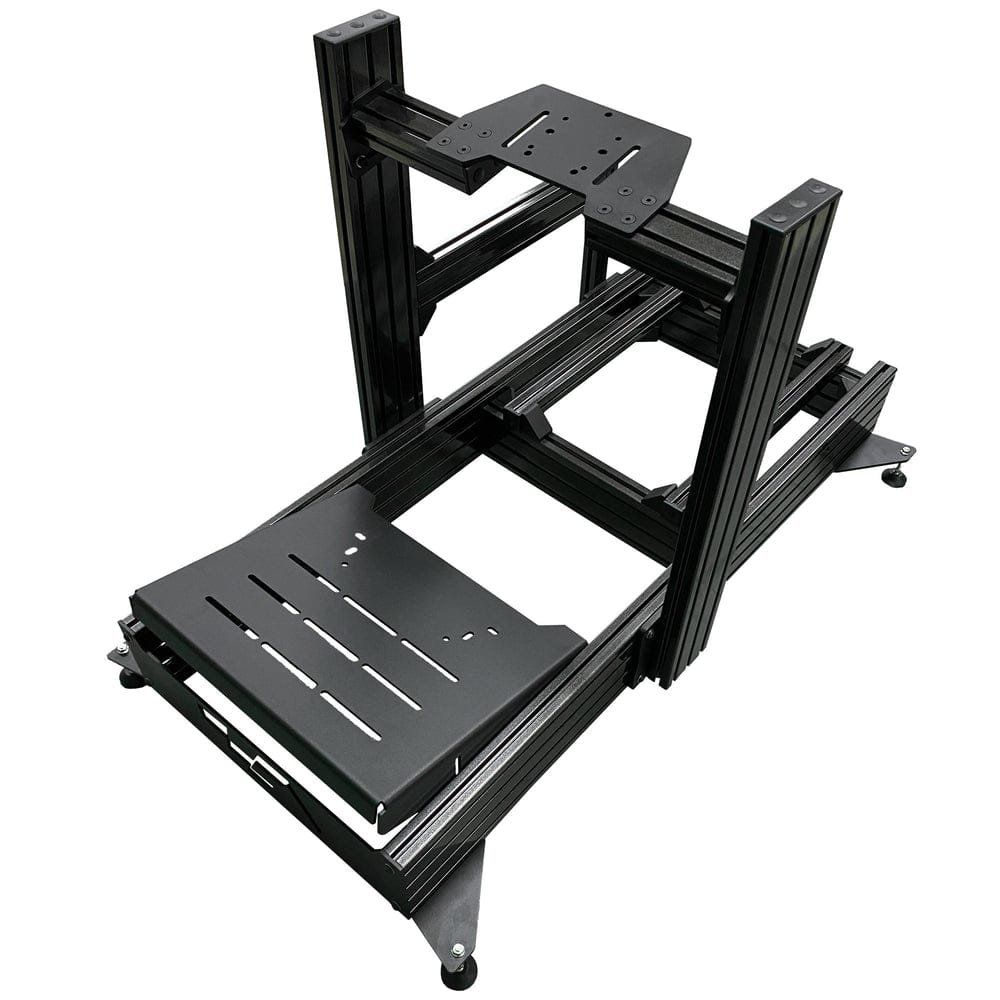

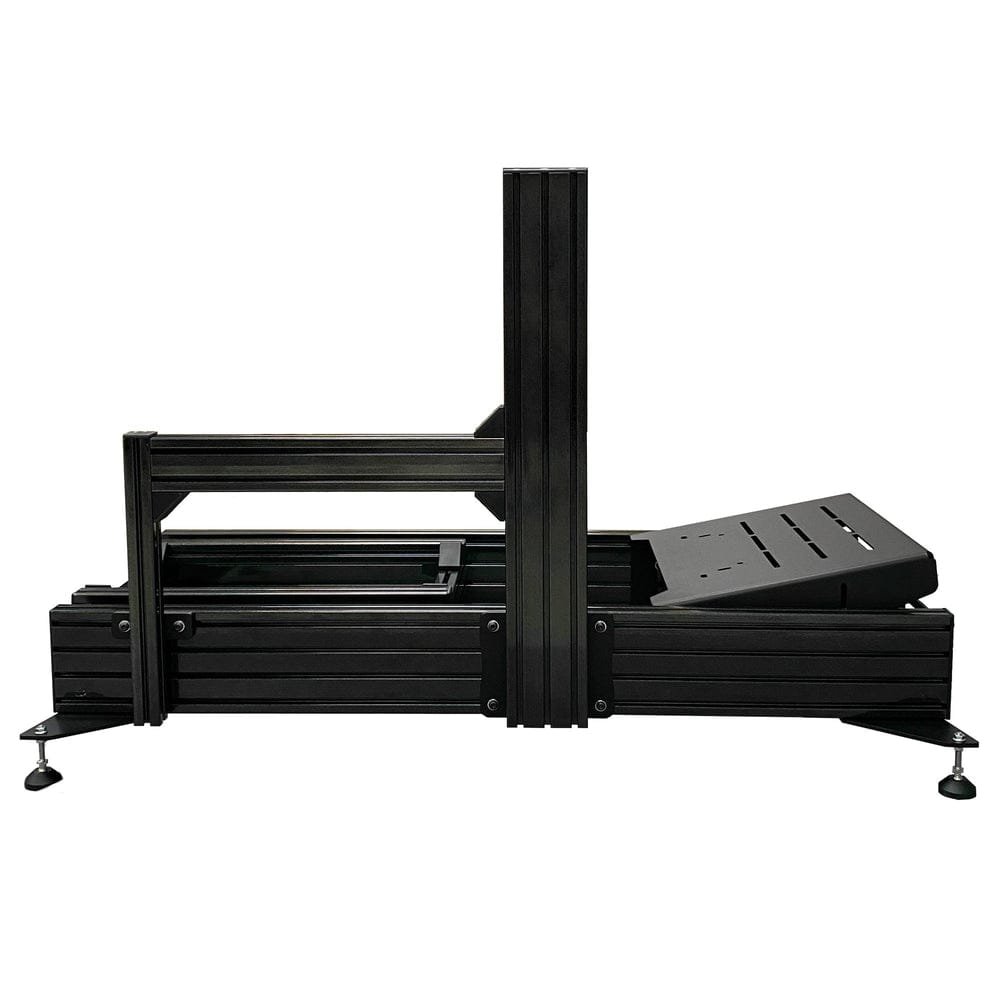

ASR 6 (Generation 1)

Description

• The ASR 6 is our flagship market-leading SimRacing chassis with a 6″ aluminum base, reinforced steering column and most importantly, the widest range of adjustment options.
• This top-of-the-line chassis features a 6″ aluminum base that will give you the most height and stability you could get from a chassis, ensuring peak performance from the most powerful SimRacing peripherals ever created.
• Without the shadow of a doubt, the ASR 6 is the most robust, compatible and adjustable SimRacing chassis available in the market today.
• Zero flex and no weak points design philosophy.

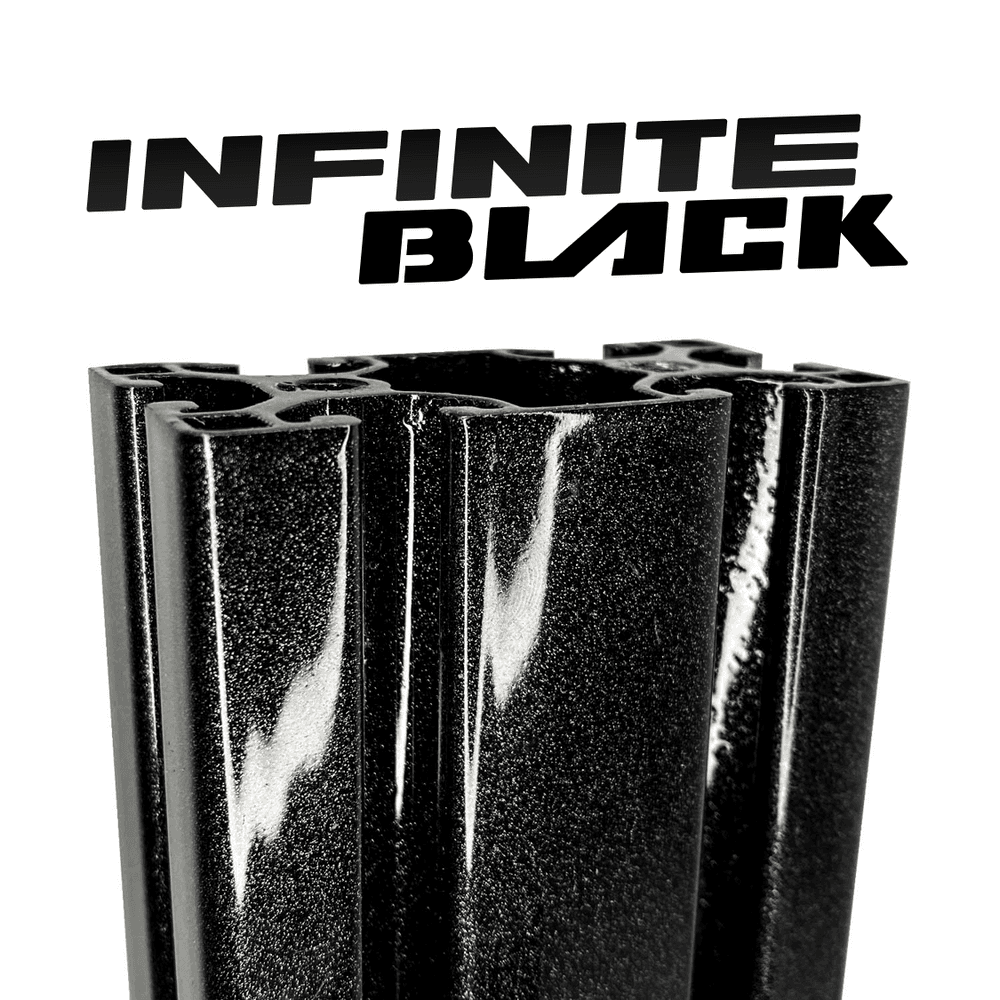

• The ASR 6 is readily available in two of our exclusive powder coat colors, Carbon Grey & Infinite Black. Our proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Built to offer SimRacers the ultimate experience and lifetime durability.
• Made from top-grade alloy Aluminum sourced in the United States of America
• Produced and packaged in Canada with the utmost care and attention.
• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.
• Thanks to the 6″ aluminum base and seat mounting configuration, you will be able to adjust your seat vertically within the base of the chassis.
• The included pedal plate is fully adjustable in height, angle, and mounting position on the chassis to help you achieve a comfortable position.
• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• Chassis size and format is adequate for most builds and heights (Up to 6’6″ or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)

Four Wheel Deck options available:

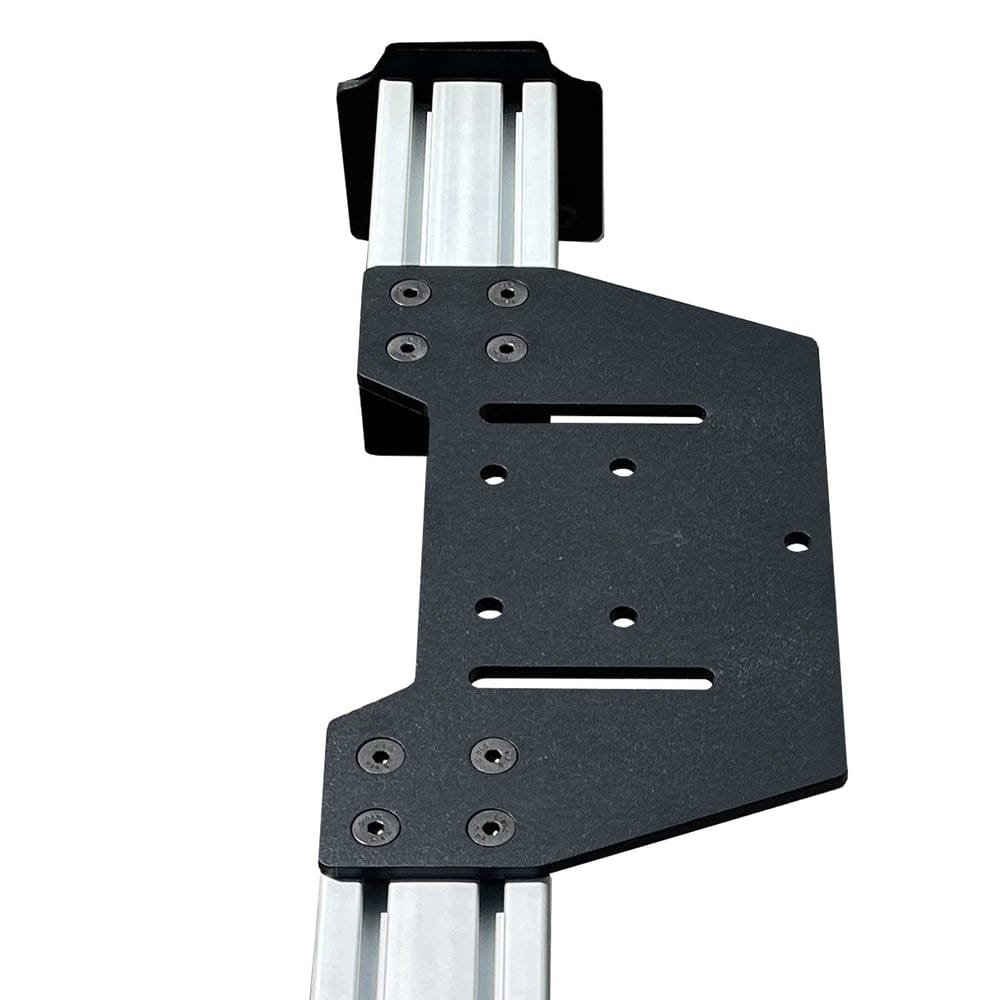

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
• Podium DD Side Mount (Fanatec Podium Series)

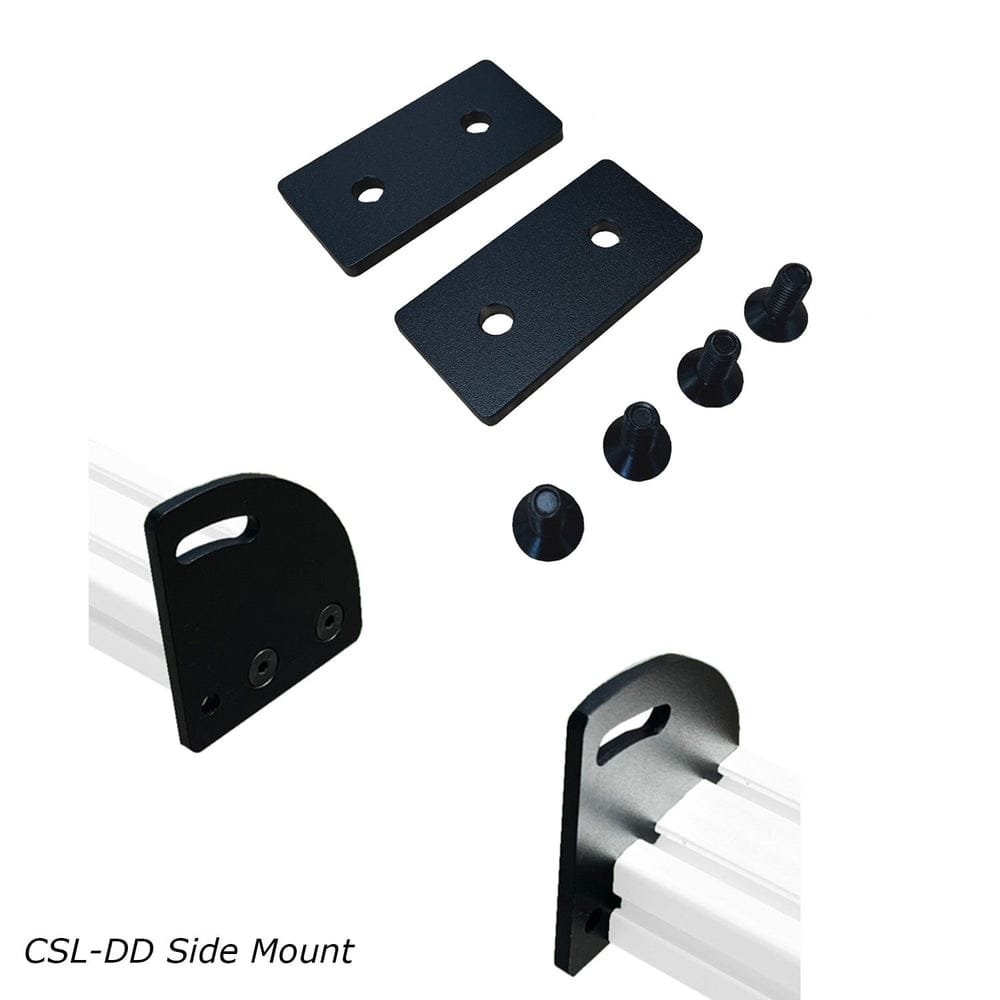

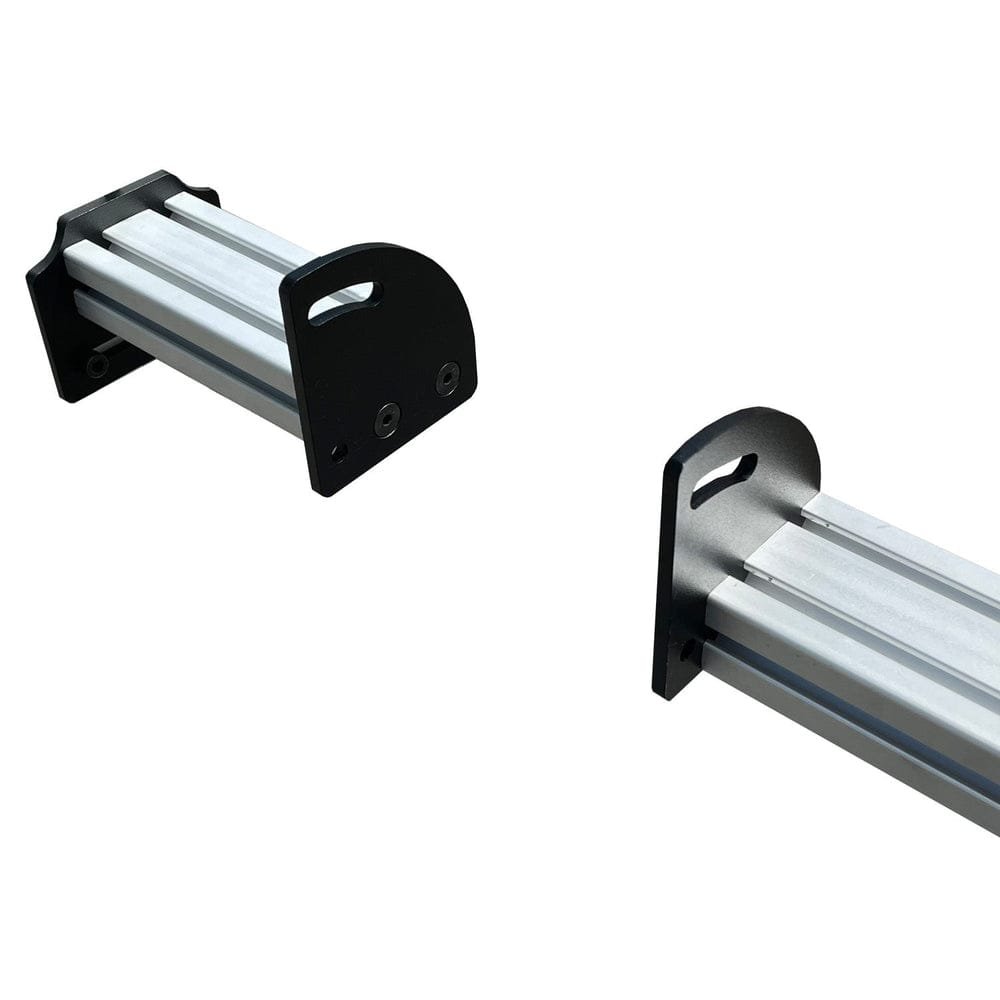

• CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)

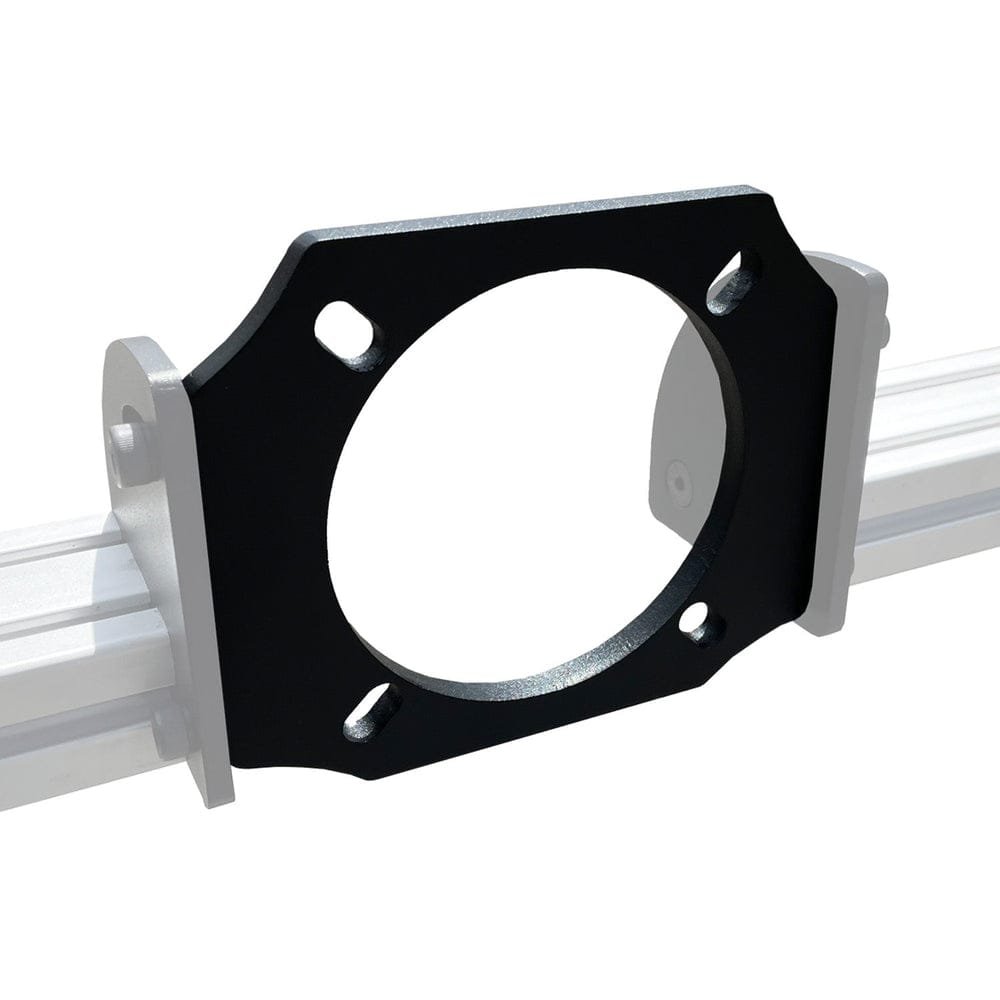

• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)

Two Pedal Tray options available:

• Steel Pedal Plate

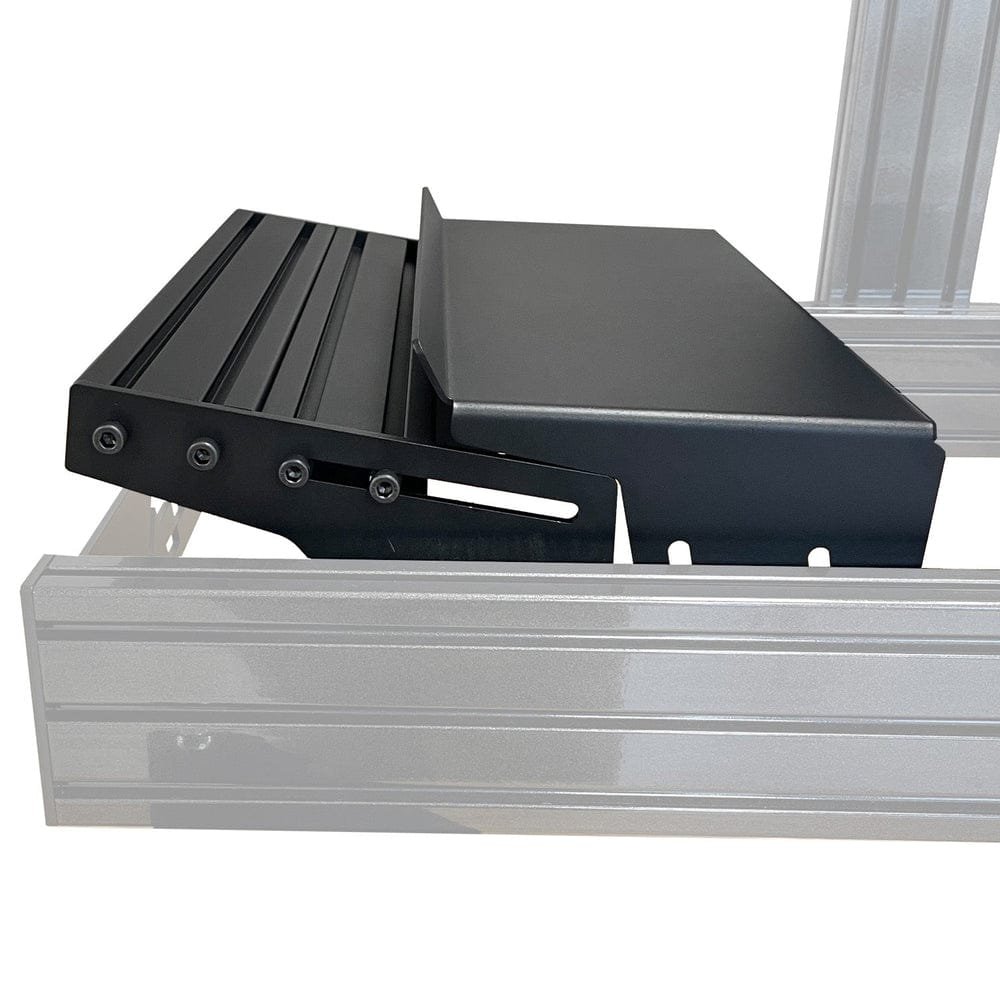

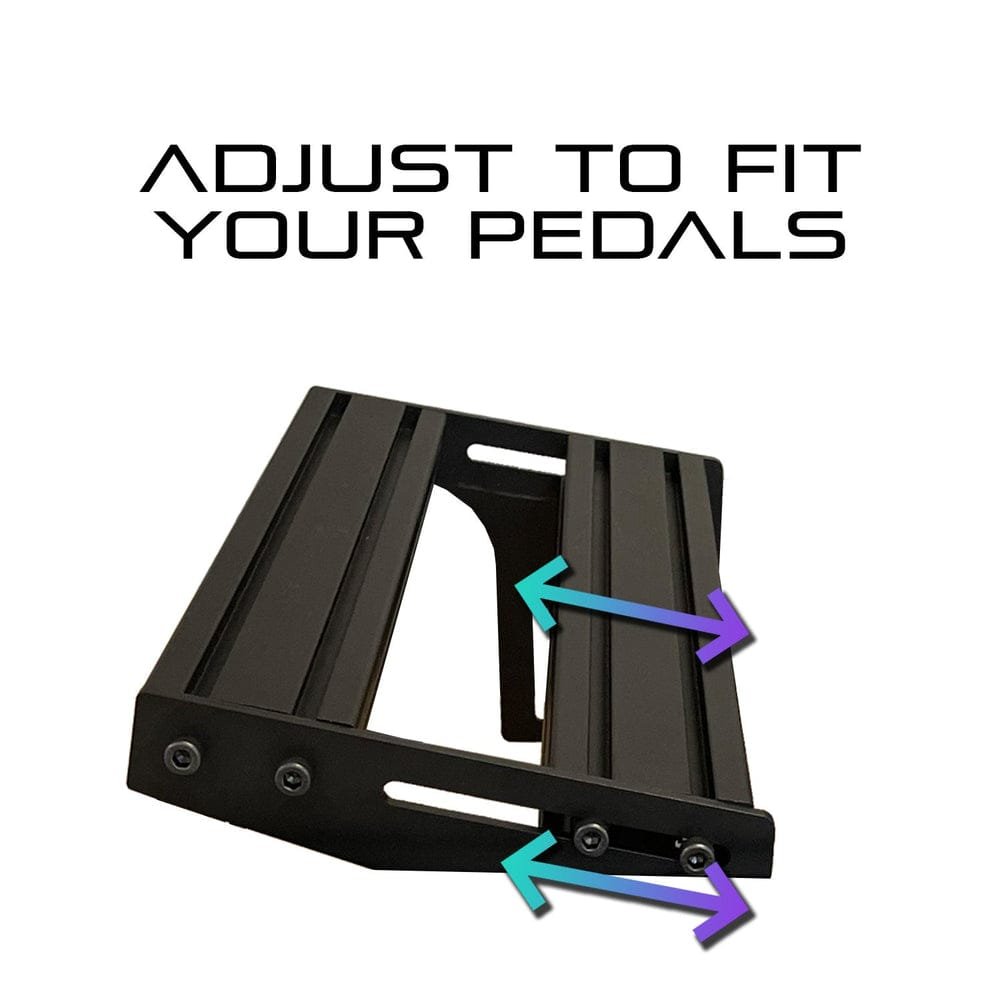

• Aluminum Pedal Deck & Heel Rest

Specifications

• Base composition : 6″x 1.5″
• Steering column composition : 4.5″ x 1.5″
• Base length : 50″
• Base width : 22″
• Chassis height from adjustable rubber feet to tip of the steering column : 32″
• Weight when assembled (w/o accessories): 132lbs.

What’s Included?

Box 1 (Aluminum) 50″ x 6″ x 3″

• 1 x Aluminum profile 50″ x 6″ x 1.5″
• 1 x Aluminum profile 30″ x 4.5″ x 1.5″
• 1 x Aluminum profile 19″ x 4.5″ x 1.5″
• Front plate with Advanced SimRacing crest

Box 2 (Aluminum) 50″ x 6″ x 3″

• 1 x Aluminum profile 50″ x 6″ x 1.5″
• 1 x Aluminum profile 30″ x 4.5″ x 1.5″
• 1 x Aluminum profile 19″ x 4.5″ x 1.5″

Box 3 (Aluminum) 22″ x 5″ x 3″

• 2 x Aluminum profile 22″ x 1.5″ x 1.5″
• 1 x Aluminum profile 16″ x 1.5″ x 1.5″
• 1 x Aluminum profile 19″ x 3″ x 1.5″

Box 4 (Hardware) 10″ x 8″ x 4″

• 16 x Corner Gussets and Plastic Caps
• 50 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16″ Screws for filted ends (16mm)
• 70 x M8 T-Nuts
• 2 x Side mounting plate (6″ x 7″)
• 1 x Side mounting plate (4.5″ x 1.5″)
• Endcaps
  • 2 x 6″ Endcaps
  • 2 x 4.5″ Endcaps
  • 5 x 1.5″ Endcaps
  • 1 x 3″ Endcaps
• 22 x Pushpins
• 4 x M10 Rubber feet
• 4 x Metal plates for rubber feet

Box 5 (Wheel Deck Selection) 13″ x 10″ x 3″

• Depending on your selection: Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x Aluminum profile 7.5″ x 3″ x 1.5″

Box 6 (Pedal Support) Depending on your selection

• Steel Pedal Plate – 19″ x 20″ x 7″
  • 1 x 3/16″ Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest – 20″ x 9″ x 6″
  • 2 x Aluminum profile 18.5″ x 3″ x 1.5″
  • 2 x 1/4″ Side Steel Plates
  • 1 x 1/8″ Steel Heel Rest
  • 12 x M8 Socket Cap Screws (16mm)
  • 4 x M8 Screws (12mm)
  • 8 x M8 T-Nuts

Compatibility

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10
• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Asetek (Front Mount)

• All Asetek Wheel base

Simucube & MiGE Motor (Front Mount)

• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases

Steel Pedal Plate

• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• Thrustmaster products
• Fanatec
  • ClubSport V3
  • CSL
  • CSL Elite
  • Not compatible with the CSR Pedals
• Logitech products
• Simtrecs ProPedal GT
• Simagic P1000 & P2000
• And much more (please inquire for specific pedal sets)

Aluminum Pedal Deck & Heel Rest

• Heusinkveld
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• MECA Cup1
• MECA EVO1
• Simagic P2000
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
• And many more (please inquire directly with us for specific pedal sets)

Downloads

• The ASR 6 assembly guide
