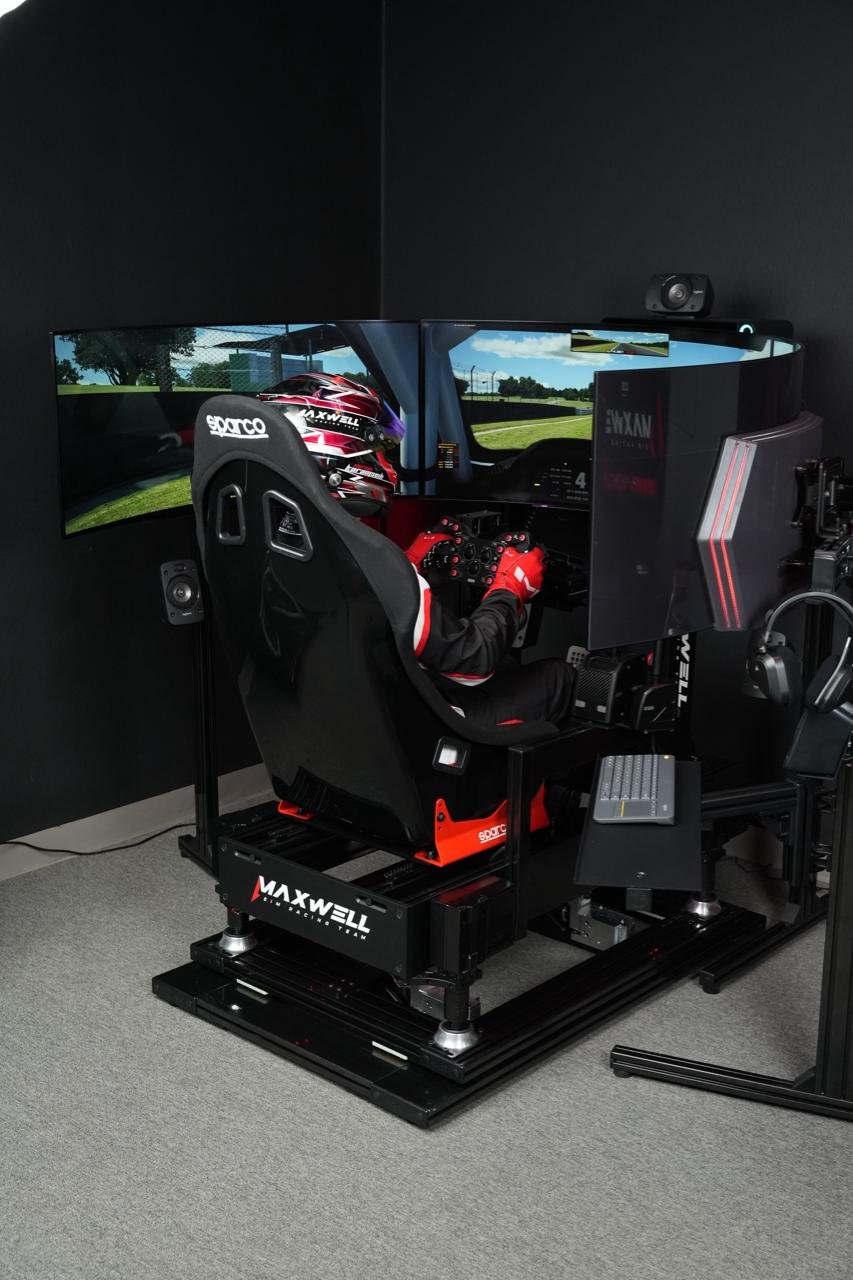

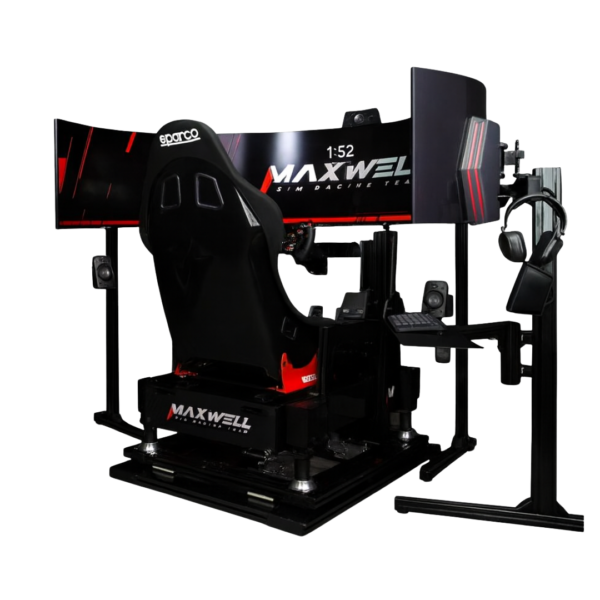

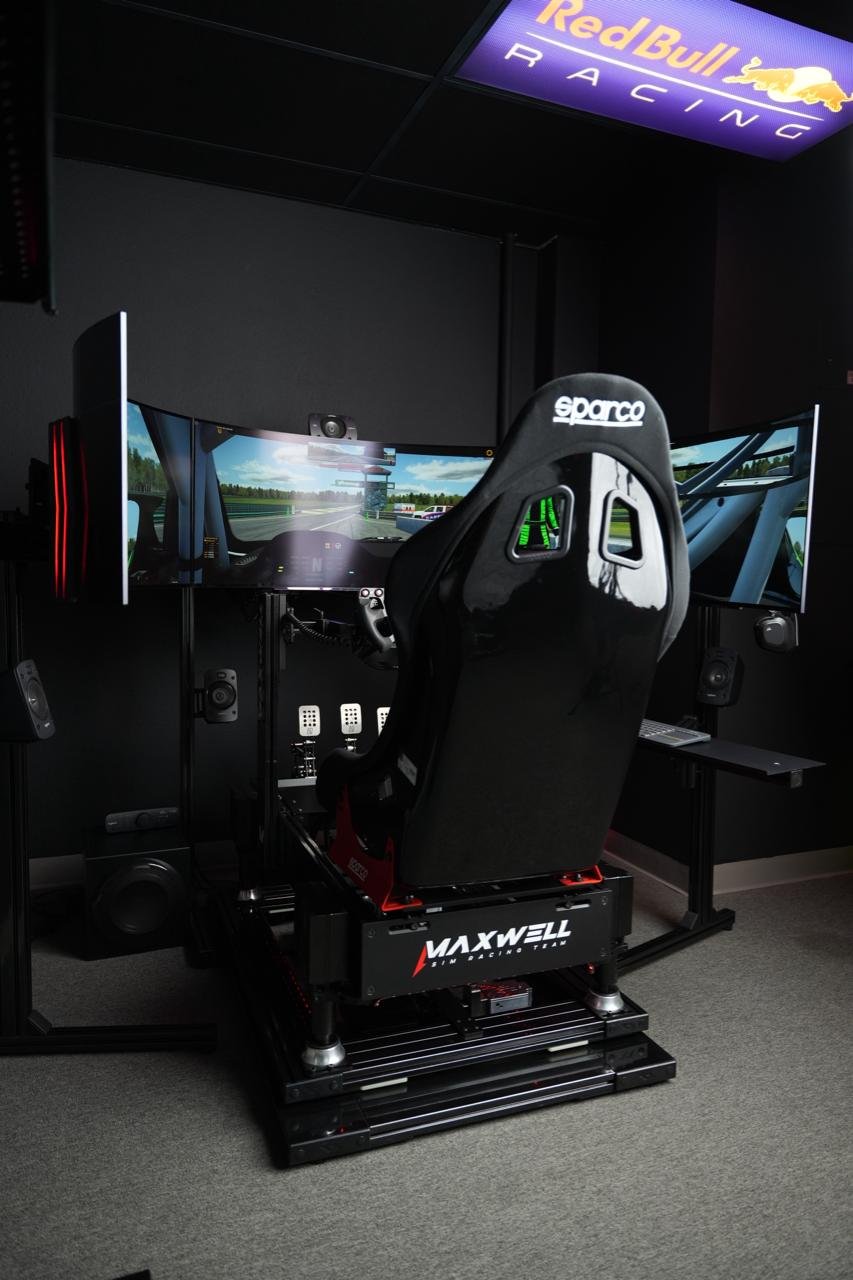

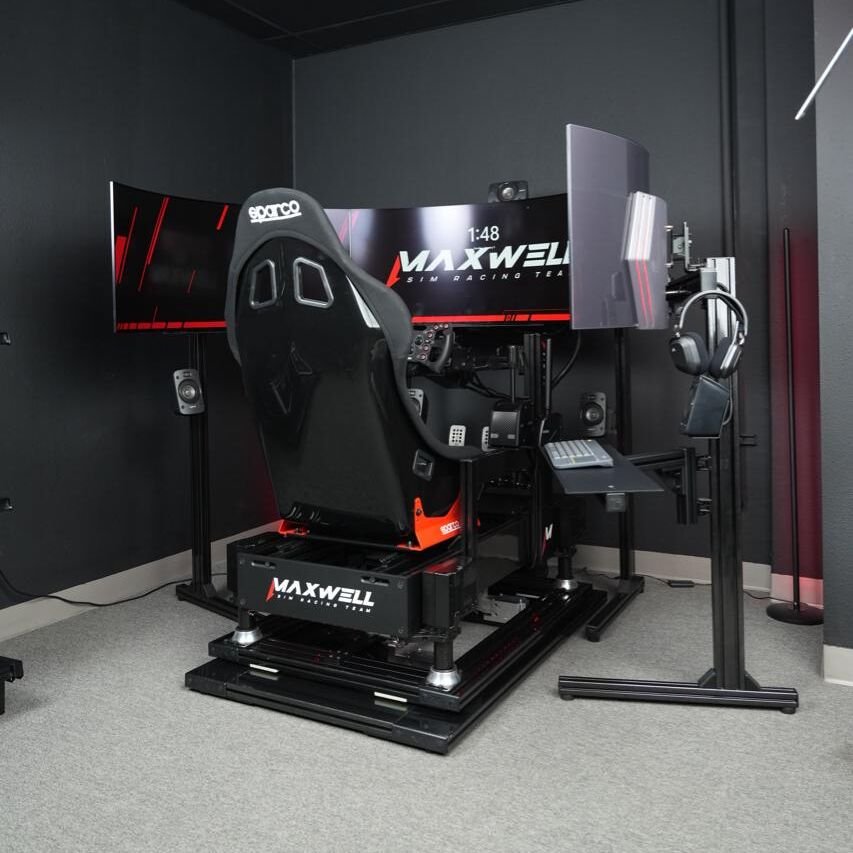

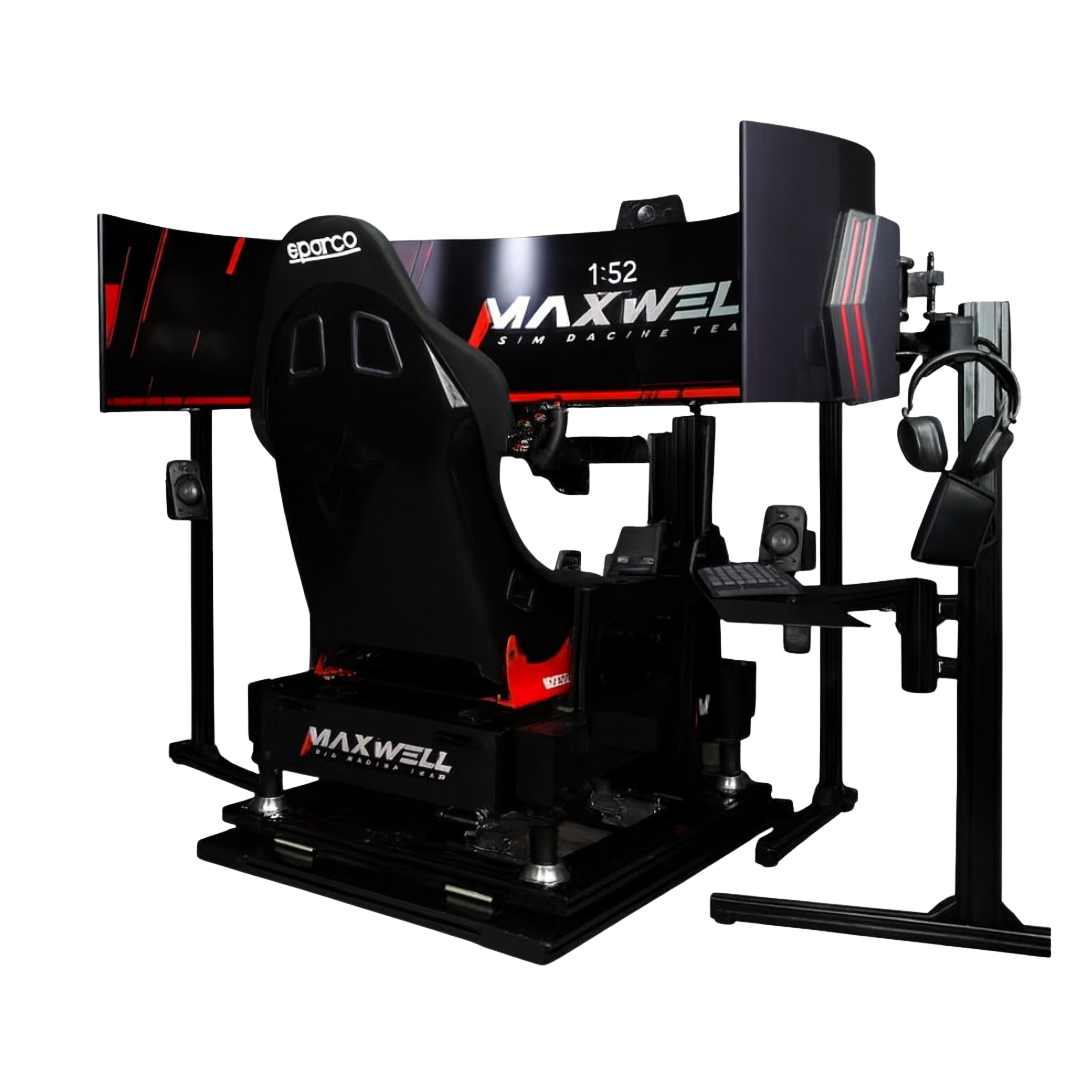

MAXWELL ASR PRO Turnkey

MAXWELL ASR PRO Turnkey

This isn’t just a simulator — it’s your launchpad to motorsport greatness. Whether you’re a serious sim racer chasing podiums, a fast enthusiast with pro-level instincts, or a collector with a love for speed — this rig is the real deal.

Built for champions, designed to impress. It looks just as good next to your Porsche, Ferrari, or Lambo as it performs on track.

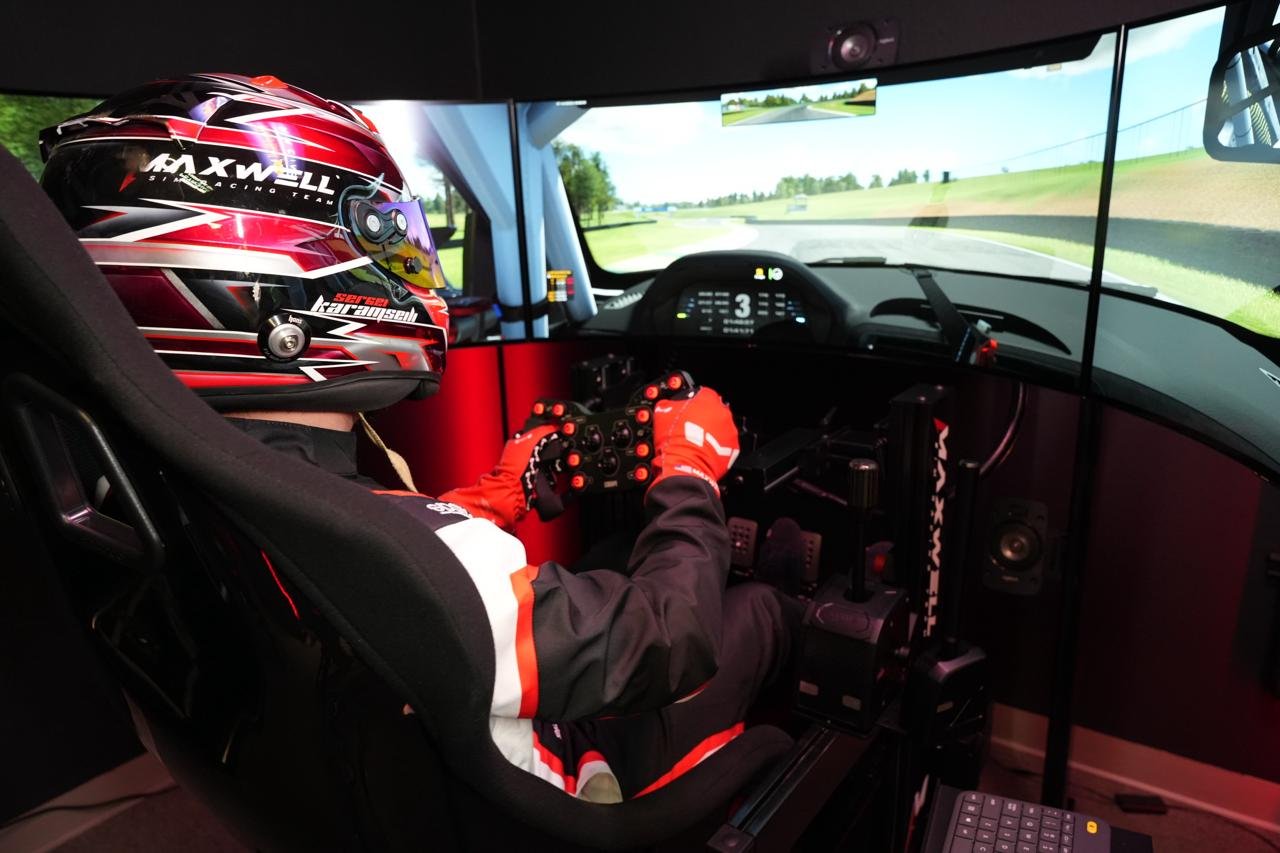

Welcome to your personal racing cockpit — where dreams meet drive.

Chassis Specifications – ASR PRO (Generation 2)

Description

• The ASR Pro offers the utmost level of stability and rigidity, with the capability of offering a perfect, zero-flex experience with wheelbases over 30nm of torque and the industry’s leading hydraulic pedals.
• The most easily adjustable wheel deck ever produced, with quick adjustment handles and sliders for horizontal and vertical position adjustments. For example, switching from a classic D-Shaped GT-style racing wheel to a 15″ NASCAR deep dish wheel will no longer be a challenge as it will take less than 10 seconds to adjust your wheel deck’s position.
• Independent pedal tray and heel rest with a mounting solution that it makes it extremely easy to adjust the position and angle in a matter of seconds, this will allow you to find the perfect pedal position that suits your needs and racing style.
• Introducing flat face aluminum profile for perfect stability. This top-of-the-line chassis will feature the highest possible grade and thickness of aluminum ever offered in the SimRacing industry.
• High-quality thick steel plates for the front and back of the rig, maximizing stability and making this rig the most stable SimRacing chassis ever assembled.
• An innovative wheel deck design that will allow users to “hot swap” from their SimRacing wheelbase to their FlightSim yoke in less than a minute.
• Built to offer SimRacers the ultimate experience and lifetime durability.
• Made from top-grade alloy Aluminum sourced in Canada.
• Chassis size and format is adequate for most builds and heights (Up to 6’6″ or 1.98m).

Generation 2 Improvements & Changes

• Brand new Classic Wheel Deck design that offers even more flexibility and adjustability for the position of your wheelbase.
• Revamped Front Plate, allowing for better and cleaner cable management at the front of your simulator
• Brand new New Generation 2 Pro Aluminum Pedal Tray & Heel Rest design which allows for industry-leading compatibility and maximum adjustability for the position of your pedals. The Pro’s Pedal Tray is the thickest and sturdiest out of all range of chassis, giving you a perfect “no flex” experience, no matter your selection of pedal.
• Completely overhauled assembly and design principles that allow for a much faster build involving less parts and most importantly, optimized stability and rigidity for the entire chassis.

Specifications

• Base length: 50″
• Base width: 22″
• Chassis maximum length (including the pedal tray support base): 56″
• Chassis width (including the wheel base column): 25″
• Full product width (including support feet): 29″
• Height at wheel base column tip: 32″
• Height at pedal tray (when pedal plate is flat): 18″
• Height at pedal tray (when pedal plate is fully angled): 21.5″

Displays Specifications

1. AOC Triple 31.5” 2K Curved Monitor Setup

Panel & Display:

• Screen Size (each): 31.5”
• Resolution: 2560 × 1440 (QHD) per screen
• Panel Type: VA with anti-glare coating
• Refresh Rate: 165Hz (DP), 144Hz (HDMI)
• Response Time: 1ms (MPRT)
• Curvature: 1000R for natural wraparound viewing
• Contrast Ratio: 3000:1 (native), 80M:1 (dynamic)
• Brightness: 300 cd/m²
• Color: 16.7 Million, 8-bit depth
• Viewing Angles: 178° H / 178° V
• Color Gamut: Adobe RGB 75%, DCI-P3 75%

Dimensions (each):

• Power Use: <52W operational / <0.3W standby
• Width: 27.58”, Height: 16.70”, Depth: 13.37”
• Weight: 17.97 lbs

2. LG Triple 45″ UltraGear™ OLED Curved Gaming Monitor Setup

Panel & Performance:

• Display Type: OLED, 44.5” diagonal (45” class), 21:9 aspect ratio
• Resolution: WQHD 3440 × 1440
• Refresh Rate: 240 Hz (HDMI 2.1 & DisplayPort 1.4)
• Response Time: 0.03 ms (GtG)
• Contrast Ratio: 1,500,000 : 1 (typ.)
• Brightness: 200 cd/m² (typ.) / 160 cd/m² (min.)
• Color Gamut: DCI-P3 98.5% (CIE1976)
• Bit Depth: 1.07 billion colors (10-bit)
• Coating: Anti-glare, low-reflection polarizer
• Curvature: 800R

Dimensions & Weight (per panel):

• With Stand (W×H×D): 39.1” × 21.2” × 14.3” (low) / 25.5” (high)
• Without Stand (W×H×D): 39.1” × 17.9” × 8.5”
• Weight: 24.0 lbs (with stand) / 18.9 lbs (panel only)

3. Samsung Triple 54.6″ 4K UHD Curved Screen Monitor Setup

Panel & Performance (per panel):

• Screen Size: 54.6” viewable (55” class), 16:9 aspect
• Panel Type: VA, anti-glare coating
• Native Resolution: 3840 × 2160 (4K UHD)
• Refresh Rate: 165 Hz via HDMI 2.1 & DisplayPort 1.4
• Response Time: 1 ms (MPRT)
• Contrast Ratio: 3,500 : 1 (native)
• Brightness: 1,500 cd/m² (peak)
• Curvature: 1000R
• Color: 1.07 billion colors (10-bit)
• Color Gamut: DCI-P3 95 %, sRGB 99 %

Advanced Features:

• HDR: HDR10+, Quantum HDR with Quantum Matrix Technology
• Multi-View: Up to 4 simultaneous inputs (HDMI 2.1, HDMI 2.0, DP 1.4, USB-C)
• KVM Switch: Single-mouse/keyboard control across devices
• Ark Dial: Dedicated controller for Quick Settings, Flex Move, and Game Bar
• Sound Dome: Integrated spatial audio speakers
• Smart Platform: Gaming Hub, streaming apps, Voice Assistants

Physical & Power:

• Dimensions (W×H×D, per panel with stand): 46.25” × 43.39” × 14.92”
• Weight: 91.5 lbs (panel + stand)
• Power Input: 100–240 VAC, 50/60 Hz
• Power (Max): 190 W; Sleep: < 0.5 W

Monitor Stand Specifications

1. Free-Standing Triple Monitor Stand

• Frame: Gen 2 Flat Face aluminum profiles (3” x 1.5”)
• Steel Parts: Textured matte black powder-coated
• Stand Type: Free-standing (independent of rig)
• Central Beam Width: 40”
• Side Beam Width: 24” each
• Max Stand Height: 40”

2. Free-Standing Triple Monitor Stand (Up to 45″)

• This Free-Standing Triple Monitor Stand can support monitors up to 45″ Ultrawide (21:9 AR) and TV’s up to 50″ (16:9 AR)
• Thanks to its 3″ x 1.5″ North American sourced aluminum beams, it can support the heaviest 45 inch TV’s available in the market today
• 4 Vertical Support to ensure the stability and sturdiness of the stand
• Fully adjustable in height and angle to help you find the perfect monitor position

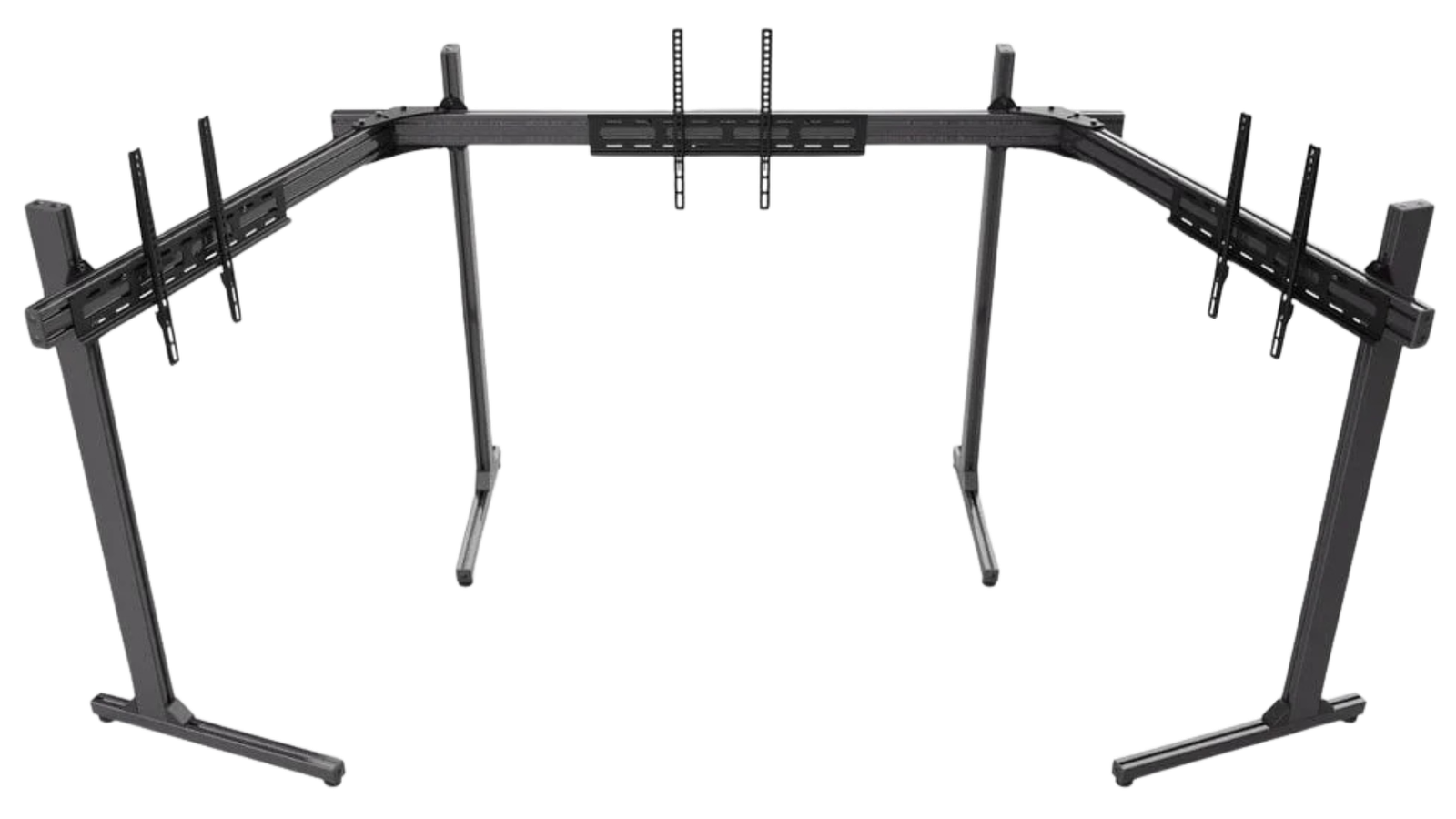

3. Free-Standing Triple Monitor Stand (Up to 65″)

• This Free-Standing Triple TV Stand can support TV’s up to 65″
• Thanks to its strong steel brackets and 3″ x 1.5″ North American sourced aluminum beams, it can support the heaviest 65 inch TV’s available in the market today
• 4 Vertical Support to ensure the stability and sturdiness of the stand
• Fully adjustable in height and angle to help you find the perfect monitor position

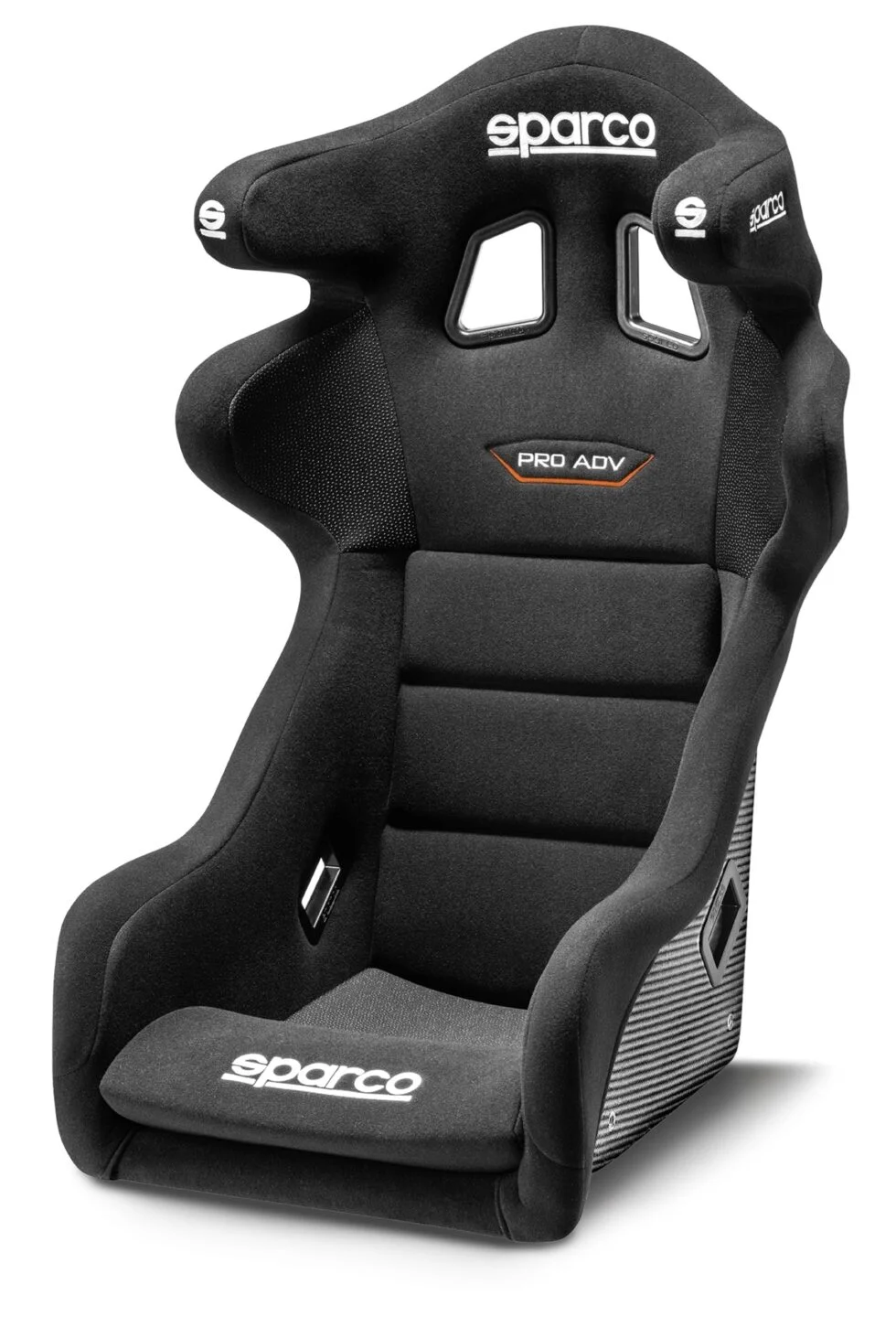

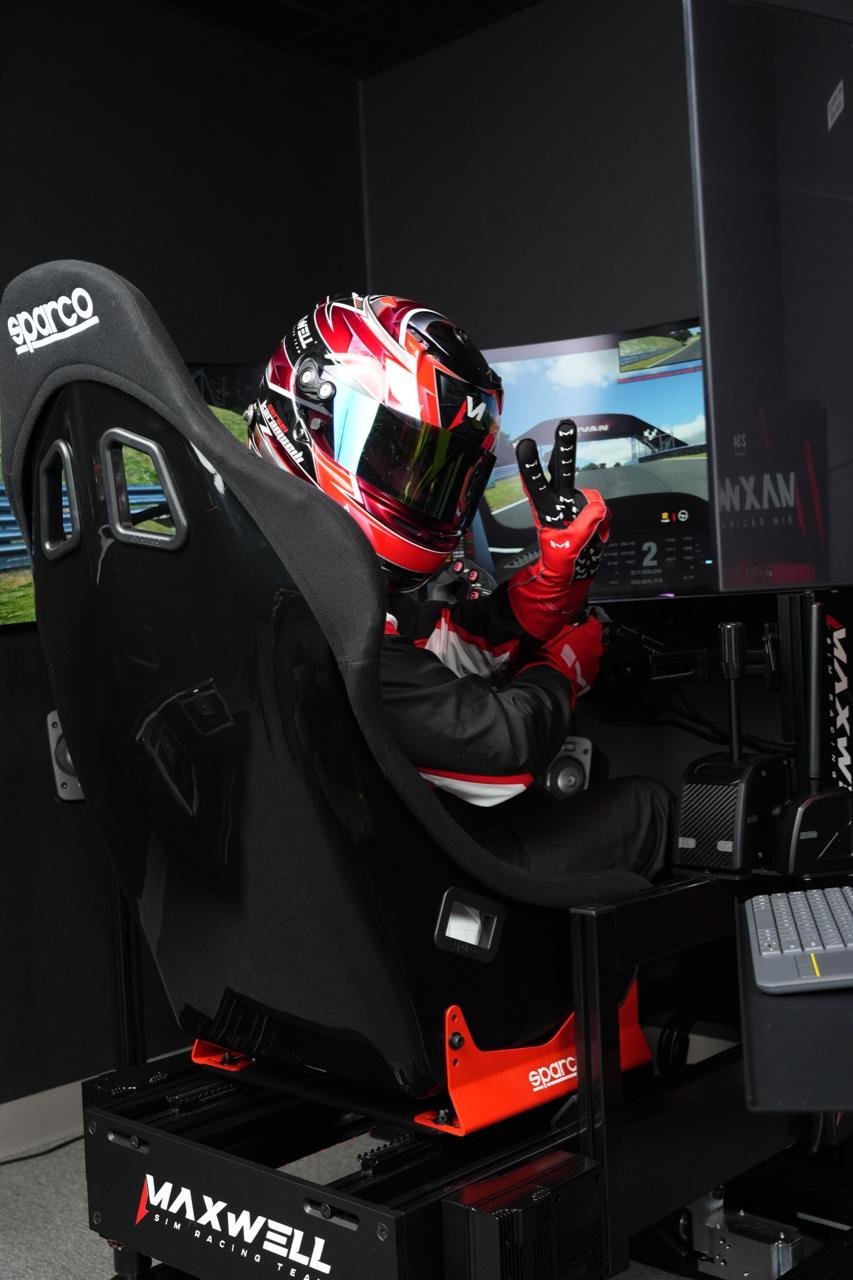

Seat Specifications – Sparco PRO ADV QRT

The Pro-ADV competition seat is the result of a collaborative partnership between Sparco and FIA. The goal was to identify ways to improve safety. The results are new levels in ergonomics, materials and above all safety, are all found in the Pro-ADV seat. Increased rigidity and the use of impact-absorbing materials are the major advances found in the Pro-ADV.

Sizing

Medium/Large – up to a 35” waist (pants size)

What is QRT?

Designed and developed at the Sparco OEM Composite Laboratory in Italy, QRT is a patented state-of-the-art technical process, based on aerospace technologies.

QRT creates an unparalleled mechanical strength to weight ratio. This innovative production method generates the lightest fiberglass composite seat shells currently on the market; in fact, it guarantees a reduction in total weight of up to 30% compared to traditional production methods. The QRT seats approach the weight of a comparable carbon fiber seat at a lower price point.

Technology

• QRT Ultralight fiberglass composite shell
• Large head and shoulder protection
• Special non-slip fabric for shoulders and bottom cushion
• Excellent ergonomics
• Fire retardant fabric

Wheel Base Specifications

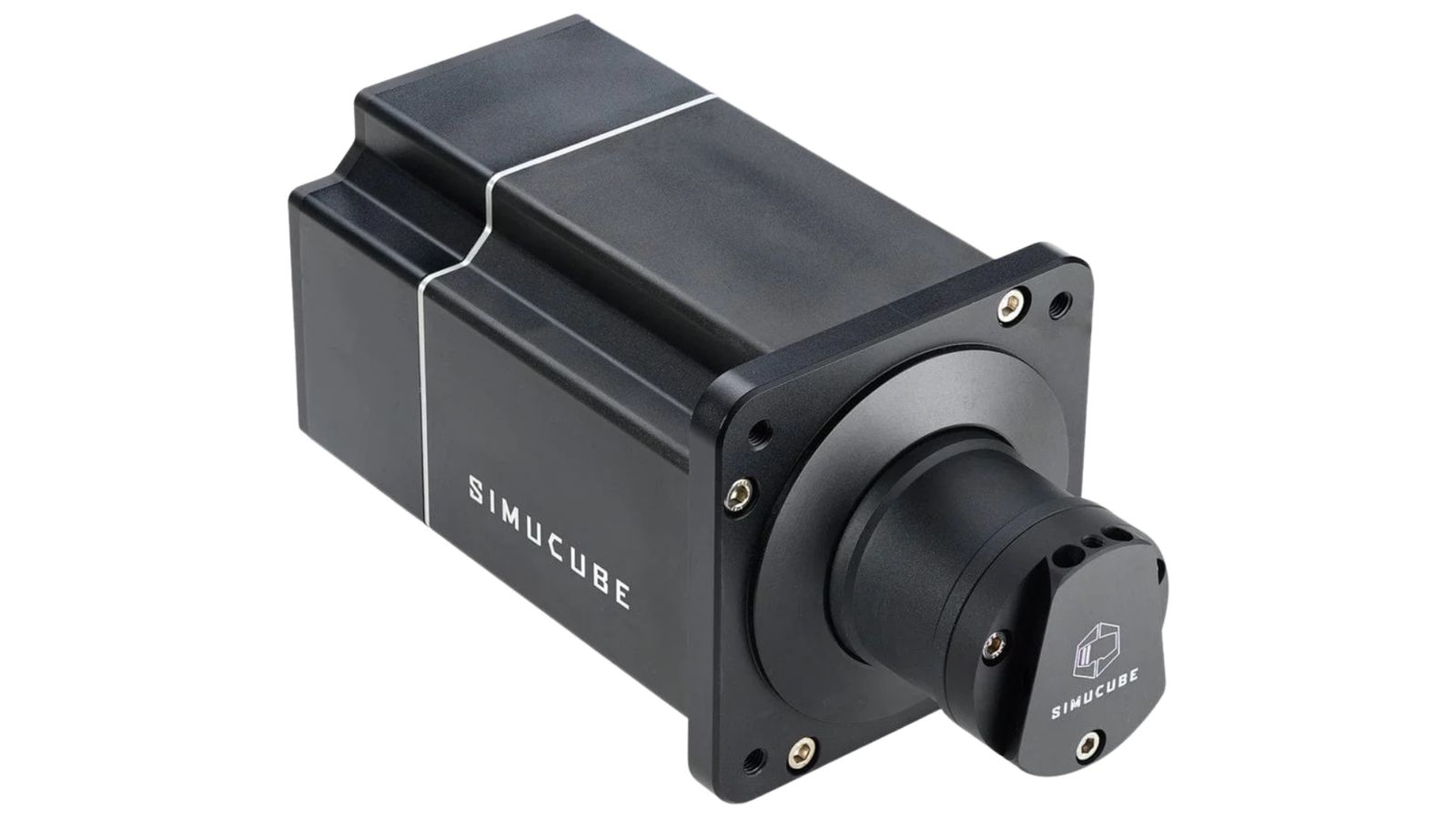

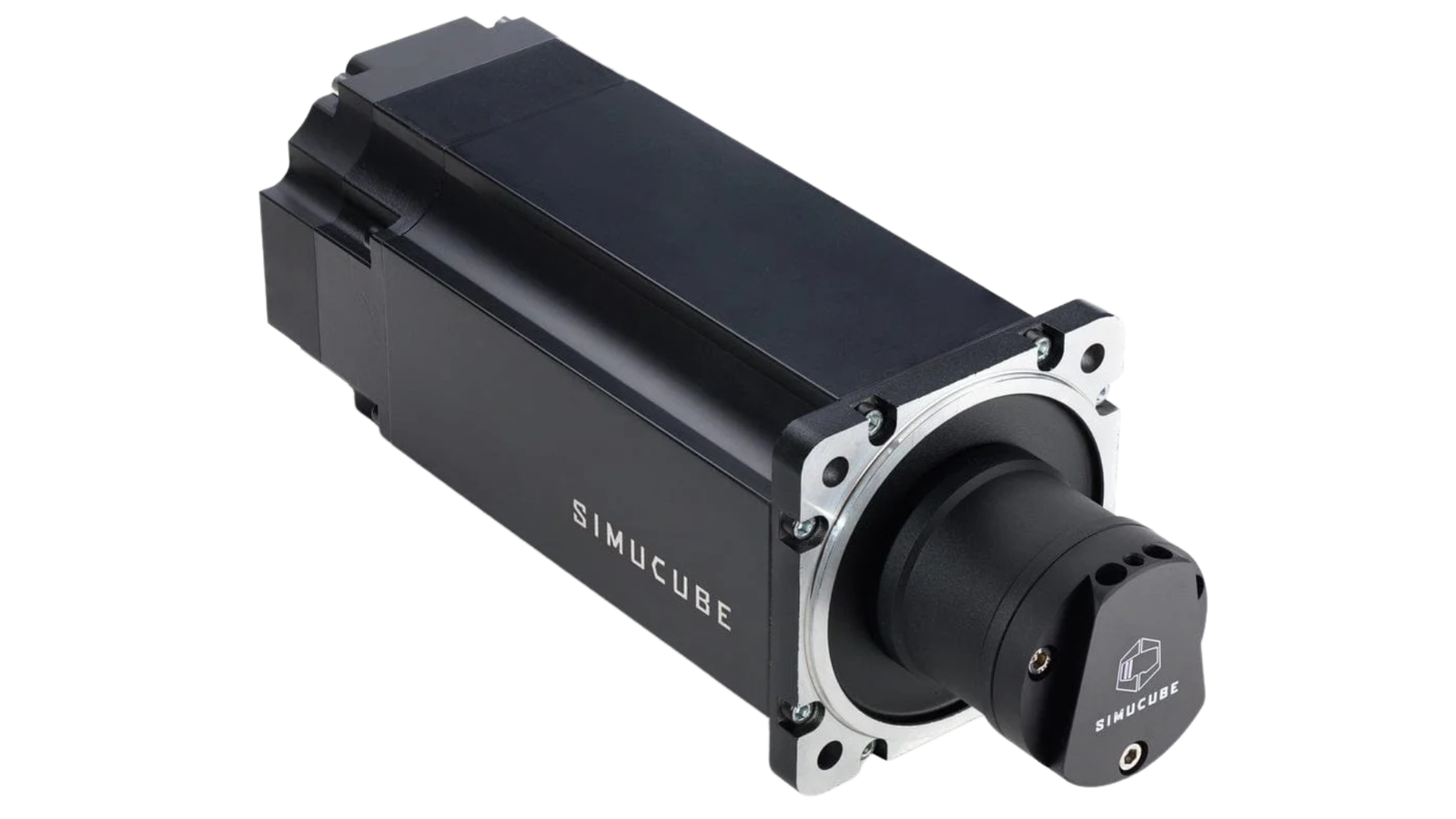

1. Simucube 2 Pro

• Ready made car profiles by professionals and the community
• Tailor it exactly to your needs
• Industrial-level hardware designed to last
• Detailed, smooth, and powerful force feedback (25Nm of torque)
• The Simucube 2 Pro offers excellent sensations in terms of detail, providing superior feedback that captures every nuance of the road. What sets this base apart is its exceptional control, delivering movements that feel more solid and realistic.
• With the TrueDrive software, you have the freedom to customize and fine-tune advanced settings, allowing you to achieve your ideal configuration based on your personal preferences. Whether you need precision, smoothness, or a balance of both, the Simucube 2 Pro adapts to your unique driving style, ensuring a top-tier sim racing experience.

Features

• Full metal construction: The body of Simucube 2 is built from precision machined solid metal parts. It’s pretty hard to find a plastic piece in it – pretty much the only non-metallic one is the antenna for the Wireless Wheel Receiver.
• Direct Drive brushless torque motor: The motor is an extraordinary one. The Simucube developer team compared over 40 motors, hand-tested over ten of them, picked the best three motors, and finally customized them to suit flawlessly in direct drive racing simulation. SC2’s latest generation motor technology delivers unforeseen torque response rate and clarity. FEM optimized motor magnetic design yields practically zero torque ripple and magnetic cogging. Simucube 2 ‘s are also individually tested and verified to exceed inhumanly tight tolerances in production.
• Dual CPU architecture: To unleash the full potential of the glorious motor and to process signals at maximum precision, Simucube 2 has been given a dedicated 216 MHz real-time processor in addition to a dedicated 144 MHz PC USB interface CPU. Unique dual CPU architecture ensures zero impact on ultra-low latency performance even when all processing and simulator actions are running simultaneously. The new 216 MHz processor features superscalar ARM architecture, making it effectively four times faster than the 72 MHz processors of IONI drive in Simucube 1.
• Oversized rugged power components: All Simucube 2’s electronics have been designed in Finland by Granite Devices. The team that is also known for their reliable industrial motor drives. Simucube is built with the same uncompromising industrial quality principles. This means prioritizing ruggedness and longevity over the cost of the components. Simucube 2 power MOSFETs are rated over 2X their actual need to make them virtually immortal.
• Robotics grade angle sensor: Simucube 2 Pro Direct Driver motor comes equipped with precision industrial robotics grade angle sensors with a resolution of 4 Million steps per revolution. The quality of the angle sensor information has paramount importance when calculating natural physics effects and filters. Any imperfection of the sensor signal would feel like a distortion in reality. All Simucube 2’s signal processing units are optimized to take full advantage of the unmatched sensor precision.
• Isolated surge protected USB: No Simucube driver shall ever become the victim of an interference-prone USB connection. Thanks to a galvanic isolation layer between the USB and power electronics. This also protects the PC from current spikes. Also, all connectors found on the back of Simucube 2 are ESD protected, exceeding the industrial requirements
• Passive Cooling: Thanks to high-efficiency direct-drive operation optimized motors and clever electronics heat guiding; there is no dust collecting nor noisy fans in Simucube 2. A High-efficiency motor puts out less heat and consumes less power.
• Remote Torque off button: Because high torque may pose a hazard if the simulator software goes nuts or if the driver becomes careless with the high torque wheel, every SC2 comes with an externally mountable Torque-off button. Optionally the button box may be upgraded to a stylish all-metal version with an additional external power switch.
• Torque Reconstruction Processing: Bypassing the simulator’s sometimes coarse digitally sampled force commands through Simucube’s world-famous force reconstruction engine, the driver will be able to feel the force feedback like it was intended by the simulator’s physics engine.
• Adjustable Torque Slew Rate Limit: Limits the rate of change in motor torque measured in Newton meters per millisecond. May be used to adapt sharpness to the fast torque spikes to the driver’s preference. The maximum settable slew rate depends on the DD motor (see the comparison table for details).
• Natural Damping, Inertia and Friction Filters: In addition to simulator-controlled damping, inertia, and friction effects, Simucube 2 implements real-time physics modeling based on user-controllable versions of them. Thanks to a high precision angle sensor in all Simucube 2 modes, these feel practically indistinguishable from real physical phenomena.

2. Simucube 2 Ultimate

The best possible Direct Drive wheel base designed for professional racers, racing teams, and race car drivers has an abundant 32 Nm of torque and the maxed-out torque response rate is at your disposal at any time and anywhere. Simucube 2 Ultimate wheel base is based on Austrian-made maximally dynamic industrial motor optimized for racing simulation. It’s equipped with a 24-bit resolution Hiperface angle sensor to be fully utilized by the most advanced signal processing unit seen in racing simulators.

Ultimate exclusively comes with advanced fine-tunable signal processing to make the experience as personalized and authentic as humanly possible. This model was designed with a “only the best is good enough” mindset to give you the ultimate competitive advantage.

Features

• Full metal construction: The body of Simucube 2 is built from precision machined solid metal parts. It’s pretty hard to find a plastic piece in it – pretty much the only non-metallic one is the antenna for the Wireless Wheel Receiver.
• Direct Drive brushless torque motor: The motor is an extraordinary one. The Simucube developer team compared over 40 motors, hand-tested over ten of them, picked the best three motors, and finally customized them to suit flawlessly in direct drive racing simulation. SC2’s latest generation motor technology delivers unforeseen torque response rate and clarity. FEM optimized motor magnetic design yields practically zero torque ripple and magnetic cogging. Simucube 2 ‘s are also individually tested and verified to exceed inhumanly tight tolerances in production.
• Dual CPU architecture: To unleash the full potential of the glorious motor and to process signals at maximum precision, Simucube 2 has been given a dedicated 216 MHz real-time processor in addition to a dedicated 144 MHz PC USB interface CPU. Unique dual CPU architecture ensures zero impact on ultra-low latency performance even when all processing and simulator actions are running simultaneously. The new 216 MHz processor features superscalar ARM architecture, making it effectively four times faster than the 72 MHz processors of IONI drive in Simucube 1.
• Oversized rugged power components: All Simucube 2’s electronics have been designed in Finland by Granite Devices. The team that is also known for their reliable industrial motor drives. Simucube is built with the same uncompromising industrial quality principles. This means prioritizing ruggedness and longevity over the cost of the components. Simucube 2 power MOSFETs are rated over 2X their actual need to make them virtually immortal.
• Robotics grade angle sensor: Simucube 2 Pro Direct Driver motor comes equipped with precision industrial robotics grade angle sensors with a resolution of 4 Million steps per revolution. The quality of the angle sensor information has paramount importance when calculating natural physics effects and filters. Any imperfection of the sensor signal would feel like a distortion in reality. All Simucube 2’s signal processing units are optimized to take full advantage of the unmatched sensor precision.
• Isolated surge protected USB: No Simucube driver shall ever become the victim of an interference-prone USB connection. Thanks to a galvanic isolation layer between the USB and power electronics. This also protects the PC from current spikes. Also, all connectors found on the back of Simucube 2 are ESD protected, exceeding the industrial requirements
• Passive Cooling: Thanks to high-efficiency direct-drive operation optimized motors and clever electronics heat guiding; there is no dust collecting nor noisy fans in Simucube 2. A High-efficiency motor puts out less heat and consumes less power.
• Remote Torque off button: Because high torque may pose a hazard if the simulator software goes nuts or if the driver becomes careless with the high torque wheel, every SC2 comes with an externally mountable Torque-off button. Optionally the button box may be upgraded to a stylish all-metal version with an additional external power switch.
• Torque Reconstruction Processing: Bypassing the simulator’s sometimes coarse digitally sampled force commands through Simucube’s world-famous force reconstruction engine, the driver will be able to feel the force feedback like it was intended by the simulator’s physics engine.
• Adjustable Torque Slew Rate Limit: Limits the rate of change in motor torque measured in Newton meters per millisecond. May be used to adapt sharpness to the fast torque spikes to the driver’s preference. The maximum settable slew rate depends on the DD motor (see the comparison table for details).
• Natural Damping, Inertia and Friction Filters: In addition to simulator-controlled damping, inertia, and friction effects, Simucube 2 implements real-time physics modeling based on user-controllable versions of them. Thanks to a high precision angle sensor in all Simucube 2 modes, these feel practically indistinguishable from real physical phenomena.
• Advanced Filter Parameters (Ultimate Only): Simucube 2 Ultimate adds more detailed tuning parameters to many of the listed signal processing methods and filters. Adjustable parameters include defining the frequency bandwidth of the signal processing allowing drivers to fine-tune the ultimate optimum setting for their rig and simulator. Ultimate drivers also have access to early access features and filters from the SC developer team.

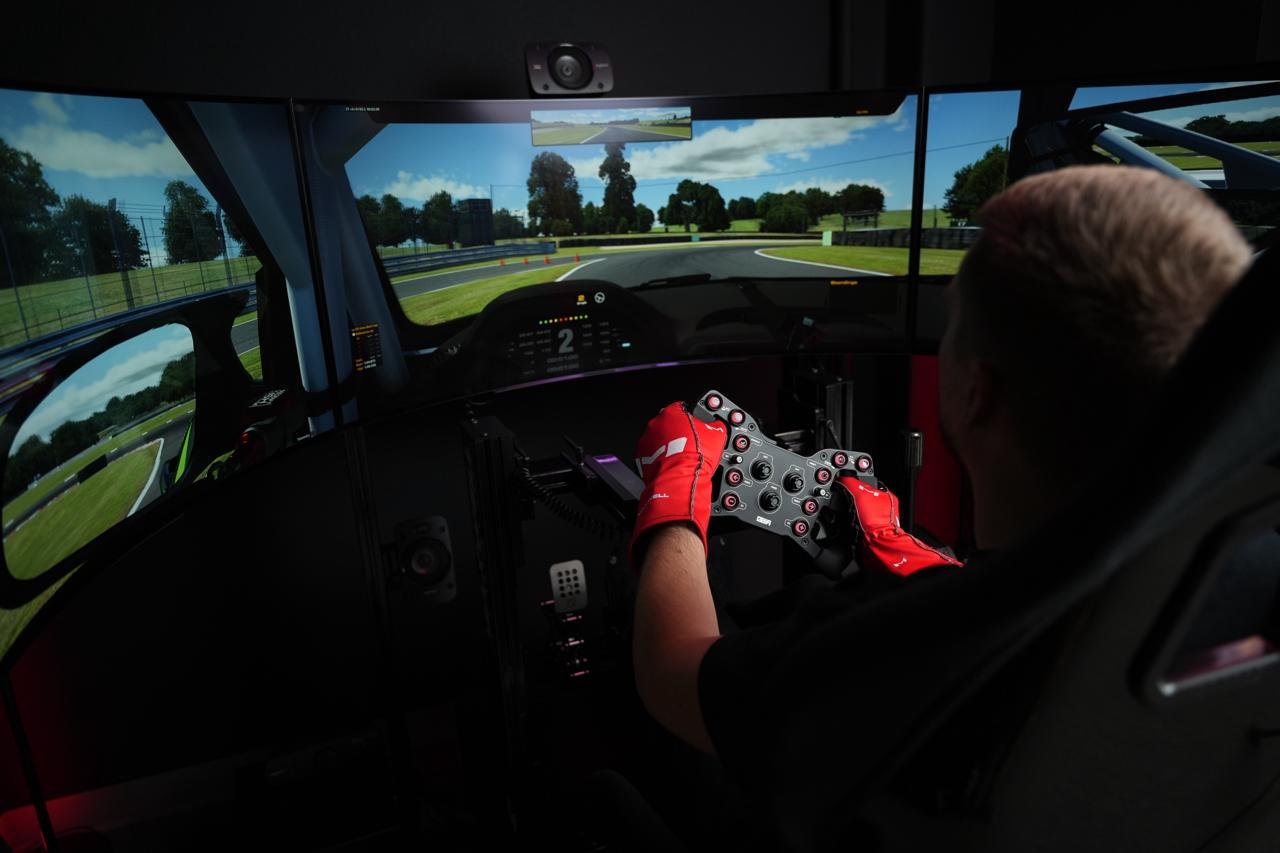

Steering Wheel Specifications

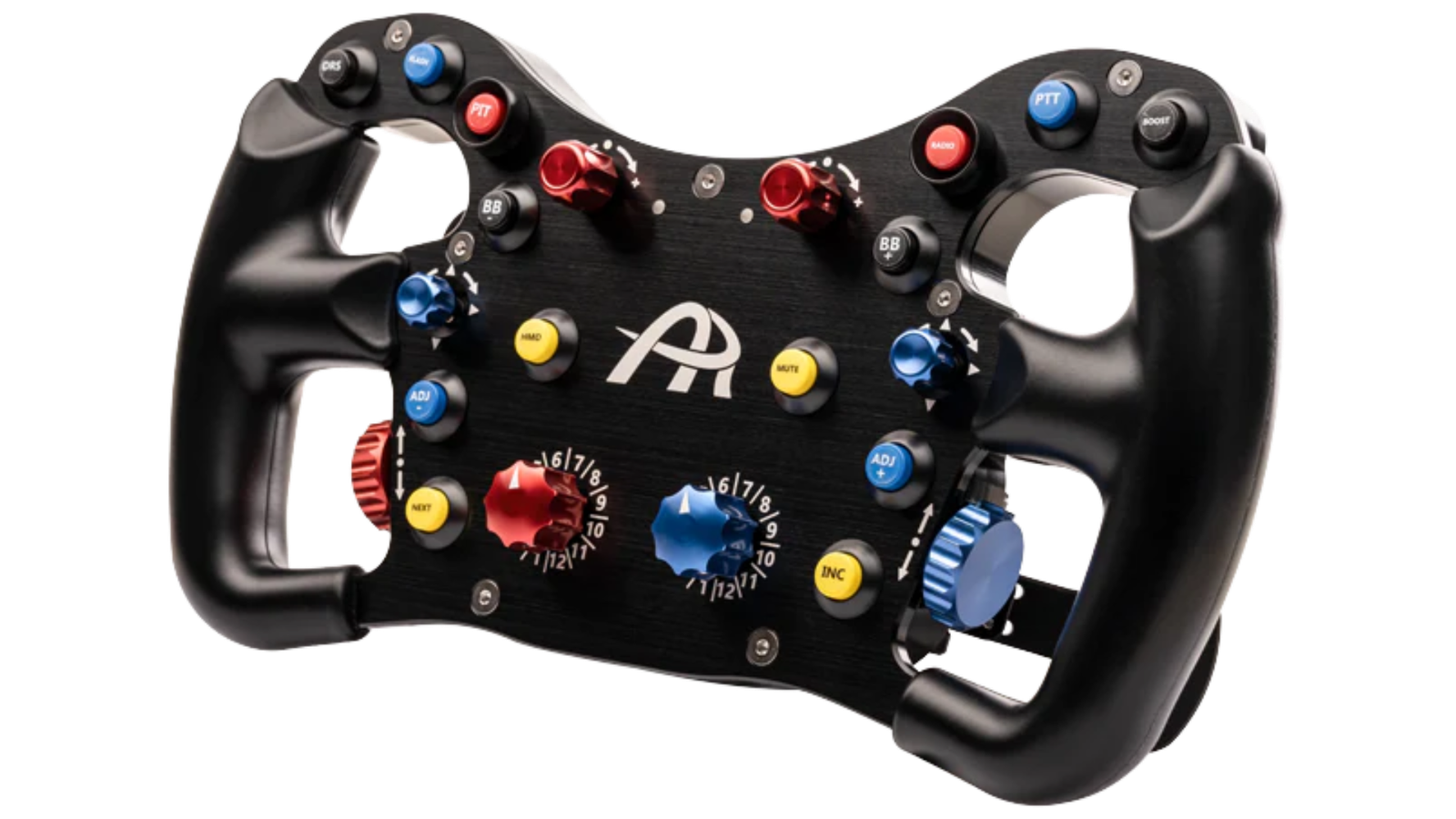

1. Ascher Racing F64 V3

• 285 mm wheel diameter
• 6 x 70 mm bolt pattern
• Mass: 1140 g

64 Inputs

• 14 x push buttons with positive tactile feeling
• 2 x protective button guards
• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x encoders inc. push button functionality, aluminium knob
• 2 x 12-position rotary switches, aluminium knob
• 2 x thumb encoders
• 2 x paddle shifters
• 2 x motorsport clutch paddles with electronic bite-point calibration

Magnetic Paddle Shifters

• CNC machined and anodized out of automotive aluminium
• Strong snap-action force
• Alternative magnets to reduce force included
• Reliable automotive switch

Contactless Clutch Paddles

• contactless, on-axis hall sensor for linear & unlimited operation
• precise and repeatable driver input
• waterproof, shock resistant, wide temperature range
• smooth operation due to pre-tensioned ball bearing design
• designed for harsh real racing environment
• precision cnc machined aluminium design
• market leading compact design

Button Labels

• 50 pcs button labels each black and white
• 72 pcs encoder labels (blue, green, red, black, yellow, white)
• Labels for various common steering wheel inputs

High Quality Finish

• Maximum grip level from closed, ergonomic rubber grips
• Machined out of automitive aluminium
• Black anodized and laser engraved
• Brushed frontplate surface finish
• Glass bed blasted paddle surface finish

2. Ascher Racing McLaren Artura Ultimate

• Platform independent USB wheel
• Magnetic and silenced double paddle shifters and motorsport clutch paddles
• Closed design with ergonomically improved rubber grips for maximum safety, stiffness, and grip
• Integrated 4” dashboard & 21 x RGB LEDs (shift lights)
• 14 x RGB illuminated high-quality automotive push buttons with individually adjustable coloring (16 Mio. colors) and tactile feedback
• 4x thumb encoder
• 2 x multifunctional 7-way joysticks
• 2 x 12-position rotary switches
• Official SimHub integration
• Animated and telemetry-supported lighting
• Retrofittable single shifter
• 300 mm wheel diameter
• 6 x 70 mm hole pattern

McLaren esports wheel

• Based on the official McLaren Artura GT4 wheel
• Uses identical components of real-racing steering wheel
• Esports optimized functionality
• Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

Over 100 inputs

• 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
• 4 x thumb encoder
• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x 12-position rotary switches
• 2 x Gen6 magnetic and silenced motorsports double paddle shifters
• Retrofittable single shifter

High-quality finish

• Machined out of automotive aluminum
• Black anodized and laser engraved
• Brushed front plate surface finish
• Glass bed blasted paddle surface finish

Gen 6 magnetic double paddle shifters

• New generation of magnetic shifters developed from scratch for motorsport applications
• Machined and anodized out of automotive aluminum
• Proven strong snap-action force
• Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
• Free of play due to preloaded ball bearings
• Marginal hysteresis for noise-free and precise gear changes
• No switches inside –extremely durable hall sensor
• Unlimited interchange possibilities due to identical mounting points for double shifter paddles

Laser-etched buttons

• Laser-etched button caps with most common symbols available
• Easily interchangeable due to two-piece-design – no need to open the wheel
• Additional labels for various common steering wheel inputs

3. GSI GT-MAX32 Dual Clutch

• 5” High-Res LCD Touchscreen
• 3 Seven-Way Multi Switches
• 4 + 16 + 4 RGB LED Rev Lights
• “CEMS N52” V2 Shifters
• One-Piece Carbon Fiber Construction
• “HSE” Dual Clutches (Optional)
• Direct-Injection Silicone Handles
• “Spec 3” Coiled Cable
• 6061 Aluminum Components
• 320mm Diameter
• 8 Momentary RGB LED Push Buttons (500 gram force)
• 70mm Threaded Bolt Pattern
• 5 Backlit RGB LED Push-Button Rotary Encoders with 5-way functionality
• Extra Label Sheets

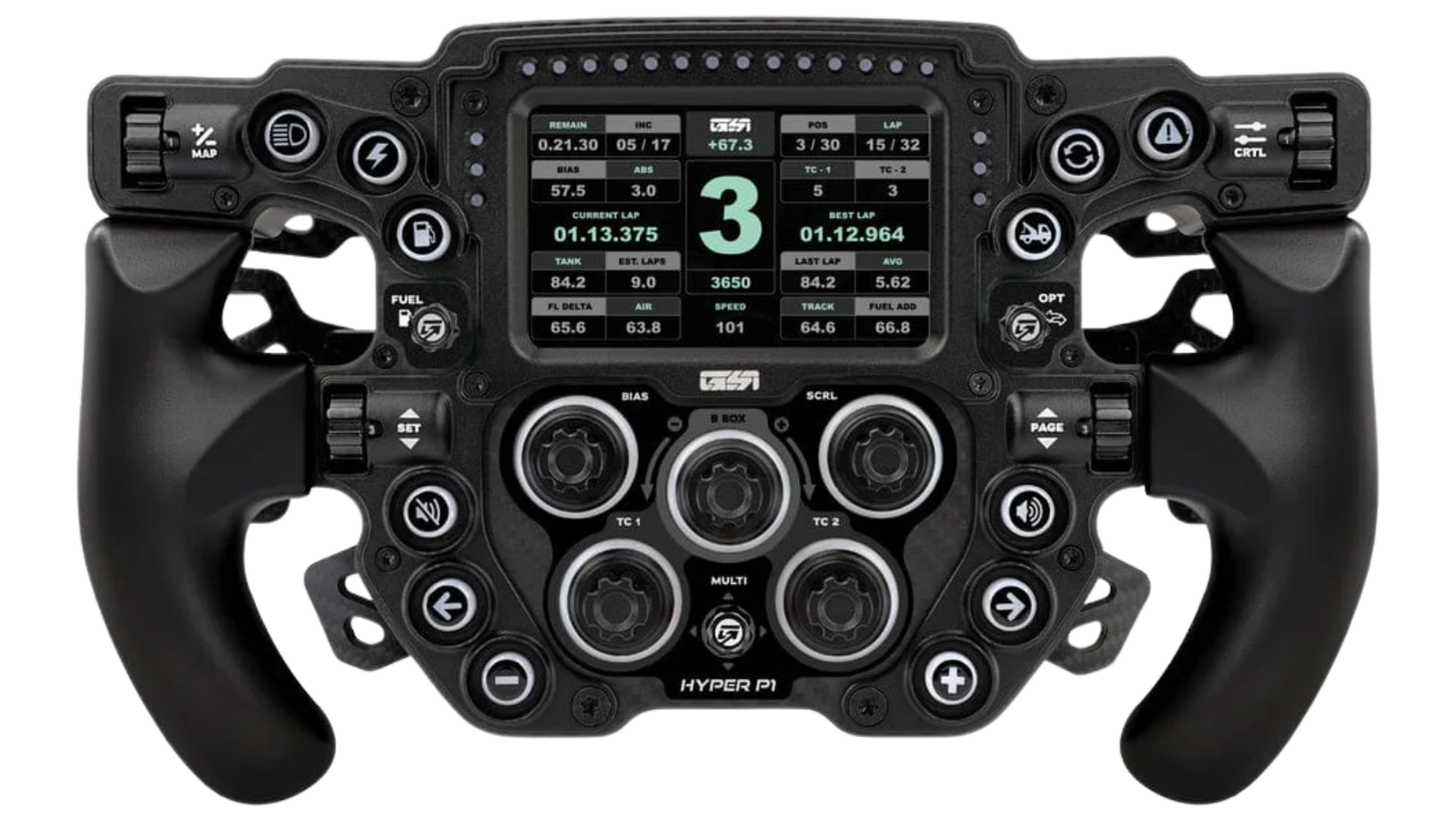

4. GSI Hyper P1

The Hyper P1 is a culmination of everything the sim racing community has requested from GSI and more. With a strong motorsport driven design language, we focused not only on functionality but building a wheel that is worthy of the top spot in our line up. A product that at every turn, exudes top tier quality in materials and construction. A true “Halo” product for the most discerning sim racer.

• Hi-Res 4.3″ LCD Touchscreen
• 3 + 14 + 3 RGB LED Rev Lights
• 3 Seven-Way Multi Switches
• “CEMS N52” V2 Shifters
• 5 Backlit RGB LED Push-Button Rotary Encoders with 5-way functionality
• Standard “HSE” Dual Clutches (6-Paddle configuration available)
• 12 Momentary RGB LED Push Buttons (500 gram actuation force)
• “Spec 3” Coiled Cable
• GSI “CEMS N52” V2 Shifters
• GSI “HSE” Dual Clutches (Optional)
• GSI “Spec 3” Coiled Cable
• 72 Total Mappable Inputs
• 88 Addressable RGB LEDs
• 6061 Aluminum Components
• 300mm Diameter
• Direct-Injection Silicone Handles
• 70mm Threaded Bolt Pattern
• 5mm Carbon Fiber Faceplate
• Extra Label Sheets

Dashboard Specifications – Ascher Racing Dashboard 5″ Edition

• Size: 109.6 x 61.6 mm
• Resolution: 480 x 854 px
• Touch-Enabled (easily switch between dash pages)
• 350 lm Brightness
• 21 RGB LEDs (15 LEDs aligned horizontally, 6 vertically in two sets of 3)
• Colors: 16 million options
• Brightness: Perfect for flash and flag signals
• Clear Viewing Angle: No light interference from nearby LEDs

Software Integration

• SimHub Official Integration
• Compatibility: Works with all mainstream simulations
• Plenty of Dash Designs and LED profiles to pick from
• Ascher Racing Design Included:
  • Direct sync with Ascher Racing steering wheels
  • LED profiles that include gear-specific shift cues
  • iRacing-specific setups with optimized telemetry

High-Quality Build

• Material: CNC-machined, anodized automotive aluminum
• Dimensions: 18mm thick with angled USB-C cable
• Single Cable Connection with an ON-OFF switch on the back

Pedals Specifications

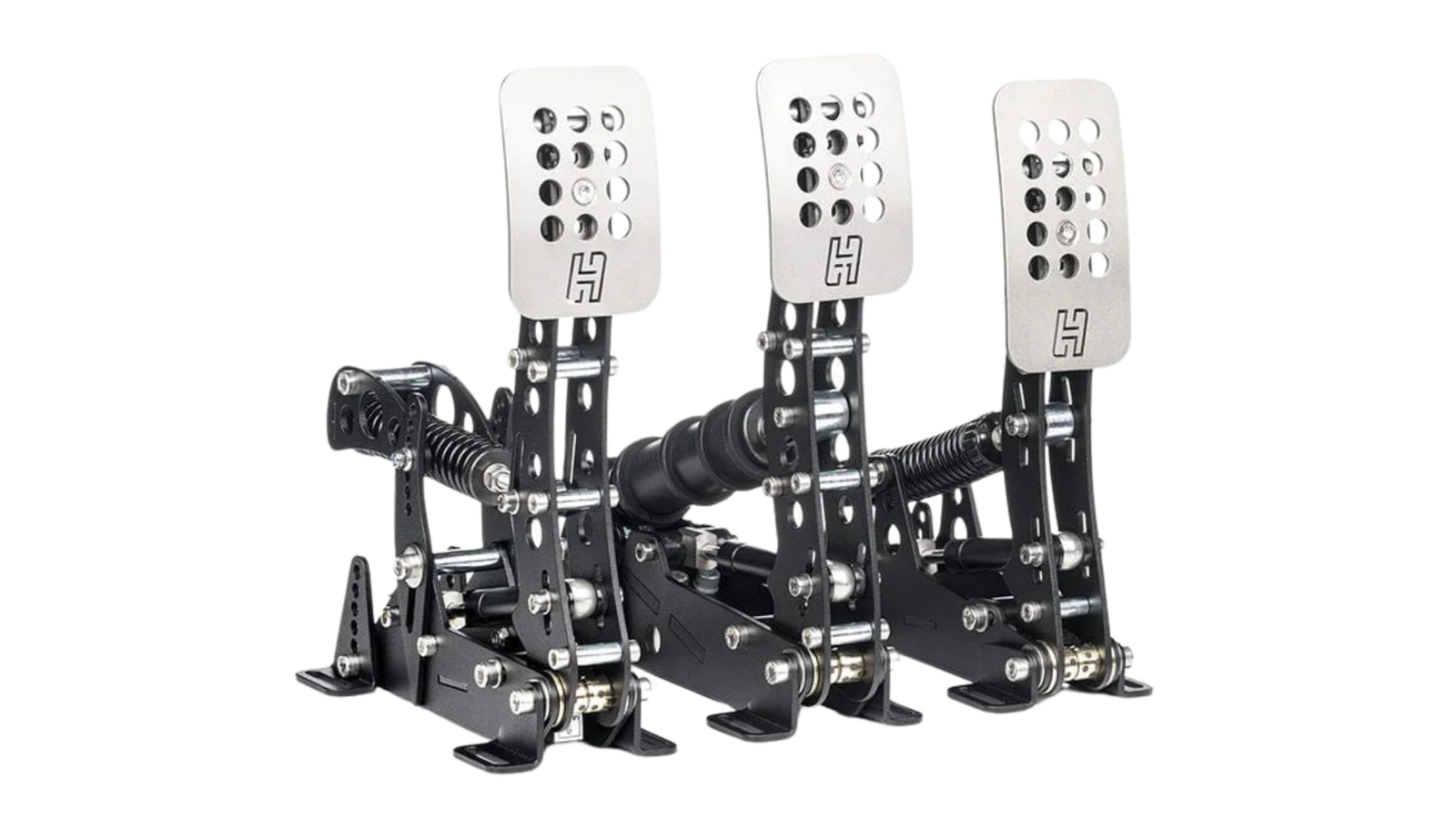

1. Heusinkveld Sim Pedals Ultimate+

Heusinkveld Sim Pedals Ultimate+ are designed for high-end professional motorsport simulators. A strong, durable and adjustable design capable of handling up to 140kg of actual force at the brake pedal (200kg loadcell). Hydraulic damping on every pedal, custom made elastomers for a progressive brake feel. Reliable load cell sensors coupled to Heusinkveld SmartControl software for an instant and accurate response with endless possibilities to configure pedal output.

Enhance your simulator experience. Heusinkveld presents some of the highest quality, most adjustable and most realistic feeling pedals on the market: Heusinkveld Sim Pedals Ultimate+. Trusted by world class GT, single seater and Esports drivers, this high-end pedal set can be used in the most demanding environments. Capable of simulating pedal loads as high as in real GT and F1 cars.

Engineering

Designed with CAD and FEA, all structural parts are CNC precision laser cut stainless steel with a glass bead blasted finish. The pedals are strong, stiff, compact and durable. Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration.

Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

The custom made brake elastomers provide a realistic progressive feel and retain their as-new characteristics even after thousands of races.

Hydraulic damping

The bespoke hydraulic dampers of the Sim Pedals Ultimate are ultra-reliable and do not require periodic maintenance. Even in the unlikely case of a failure, all hydraulic dampers can easily be removed while the pedal still retains its basic functionality as the pedal sensors are separated from the hydraulic circuit.

Sensors & output

The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle and clutch position and brake force. Their accuracy and durability are unmatched as they do not wear over time. Heusinkveld proprietary electronics provide a full-range 12bit output for each pedal. Custom output curves can be freely configured and stored into profiles using the Heusinkveld SmartControl software.

Components

• Throttle: Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer. The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted. A load cell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.
• Brake: The brake features a realistic dual stage brake system with a 200kg load cell, capable of handling actual pedal forces up to 140kg (measured at the pedal footplate). The adjustable coil spring simulates the initial pad-to-disc gap. The main brake springs are all new custom made Heusinkveld injection molded thermoset elastomers. These proprietary elastomers are smooth and responsive and provide an unprecedented progressive brake resistance (convex force curve) just as you would have in a real race car. On the ingoing and outgoing stroke they have firm bump and rebound characteristics. Automated testing shows these elastomers have zero performance degradation even after one million duty cycles. You can choose from a total of 9 possible resistance settings, allowing you set set the pedal from very soft to extremely stiff. The brake features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as experienced in actual brake assemblies. The amount of damping is adjustable.
• Clutch: A clutch feels lighter towards the end of travel. The Sim Pedals Ultimate+ clutch features a regressive spring mechanism simulating this concave force curve and also allows you to greatly adjust the pedal resistance, travel and feel. The clutch features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as seen in real clutch assemblies. The amount of damping is adjustable. A loadcell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.
• Electronics:  Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. After calibration every single pedal provides an output signal using the full 12-bit range, providing instant and accurate output to your favorite simulator software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate. The pedals have passed full EMC compliance testing, guaranteeing a stable output signal regardless of other electronic components used in your simulator.

SmartControl

The Heusinkveld Ultimate+ come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.

These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.

Brand-new Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferences while driving. Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.

2. Heusinkveld Ultimate+ Throttle & Clutch and Simucube Active Brake

• Heusinkveld Ultimate+ Throttle: Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer. The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted. A load cell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.
• Simucube Active Brake: Simucube ActivePedal is the world’s first pedal created by you. With unlimited adjustability, repeatability, and telemetry based force feedback effects, it is designed to be the last pedal you’ll need. The Simucube ActivePedal has no passive elements. With its unlimited adjustability, repeatability, and simulator telemetry data-based force feedback effects, it adds a whole new dimension to racing. Zero wearing materials means zero maintenance. Total consistency with no mechanical adjustments necessary. Just focus on the race.
  • Configure as a brake, throttle, or clutch
  • Maintenance free
  • ABS feedback
  • Force feedback
  • Traction control
  • 200kg brake pressure
• Heusinkveld Ultimate+ Clutch: A clutch feels lighter towards the end of travel. The Sim Pedals Ultimate+ clutch features a regressive spring mechanism simulating this concave force curve and also allows you to greatly adjust the pedal resistance, travel and feel. The clutch features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as seen in real clutch assemblies. The amount of damping is adjustable. A loadcell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

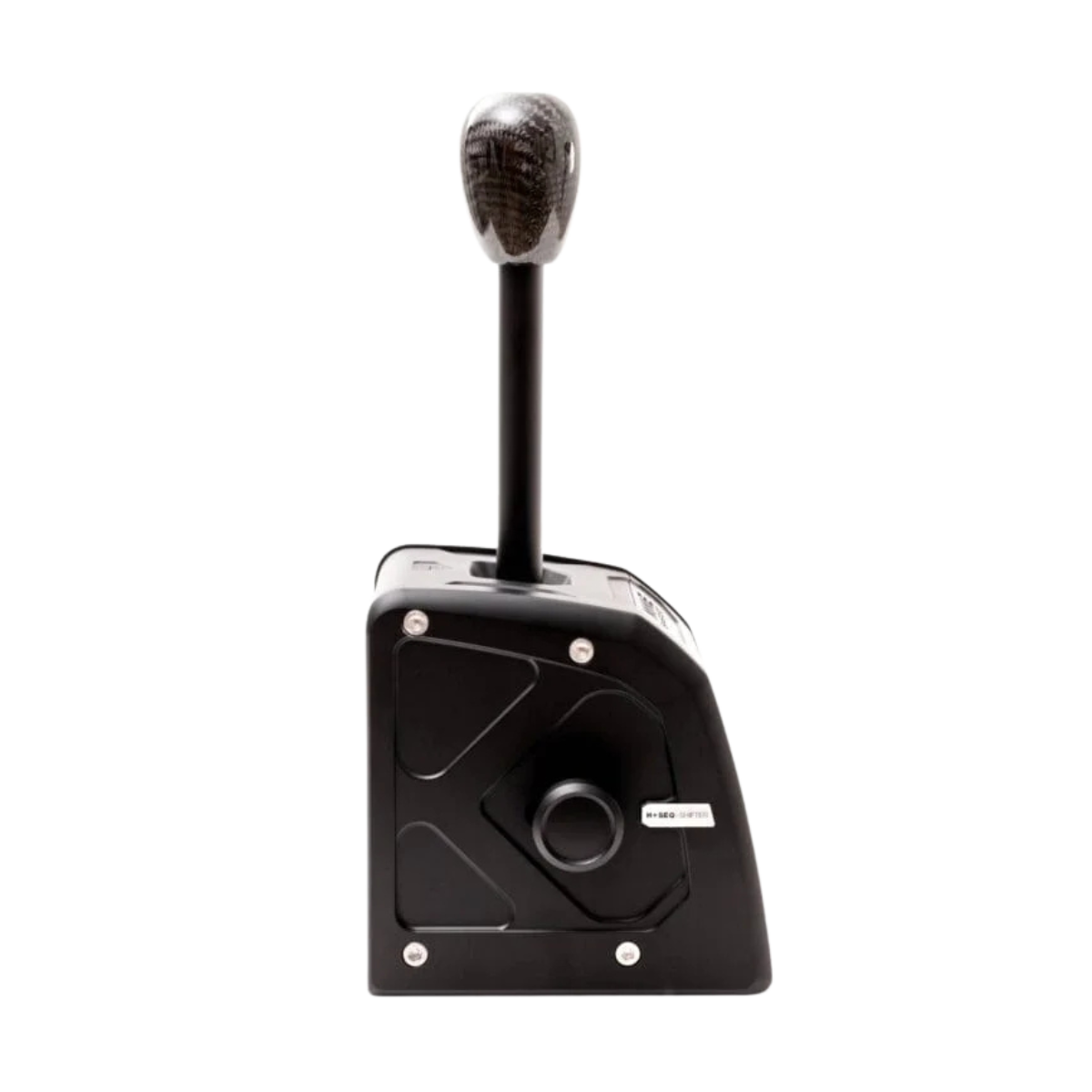

Shifter Specifications – MME Motorsport H+Sequential Shifter EVO2

• Designed for ultimate feedback and feel
• Easily switchable between H and Sequential mode – no tools needed
• Reverse lock-out pull mechanism
• 4 or 6 speed lockout switch
• Longer horizontal travel to avoid 2-3 mis-shifts
• CNC Machined from the aircraft grade aluminium
• Integrated USB cable (1.5m/60in long) – no cheap connectors that can disconnect or fall out
• Custom build electronics – no cheap Chinese USB modules
• Shifter:
  • Completely CNC machined from 7075 Aluminium
  • Very robust and built to handle dynamic forces for heavy duty racers
  • Integrated USB Cable
• Reverse lock-out pull mechanism: Precise and ergonomic pull mechanism to avoid shifting to reverse in the heat of the moment
• Multiple gear lever knobs: 2 different gear lever knobs for real shifting experience
  • Ball shaped for H pattern mode
  • Cylindrical shaped for Sequential mode
• Easiily switchable between 4 and 6 speed gearbox: Easy 180 degree turn by hand to lock out 5 and 6th gear for our 4 speed gearbox fans.

Handbrake Specifications – MME Motorsport Handbrake

• Designed for ultimate feedback and feel
• Adjustable travel
• CNC Machined from the aircraft grade aluminium
• Integrated USB cable (1.5m/60in long) – no cheap connectors that can disconnect or fall out
• Custom build electronics – no cheap Chinese USB modules
• Very robust and built to handle dynamic forces for heavy duty racers

Speaker System Specifications – Logitech Z906 5.1 Surround Sound

Audio Configuration & Power

• Channels: 5.1 (4× satellite, 1× center, 1× subwoofer)
• RMS Power: Total 500 W (Satellite: 4×67 W; Center: 67 W; Subwoofer: 165 W)
• Peak Power: 1,000 W
• Frequency Response: 35 Hz – 20 kHz
• Signal-to-Noise Ratio: > 95 dB

Inputs & Controls

• Analog: 3.5 mm stereo, RCA
• Digital: 2× optical S/PDIF, 1× coaxial
• Direct: 6-channel analog input
• Control: Stackable console with volume, input, surround mode controls
• Remote: Infrared wireless with full control

Additional Details

• IR Remote Range: up to 5 m
• Dimensions: Satellites 4” × 7” × 4” each; Subwoofer 12” × 13” × 9”
• Weight: Subwoofer ~15 lbs; each satellite ~2 lbs

Motion System Specifications

1. D-BOX Generation 5 4250i Haptic System (1.5″ travel range, 4 actuators)

Always wanted to reach the next level of your sim racing journey? Look no further than D-BOX’s all new G5 haptic system. Their combination of both motion and vibrations in a single extremely high-end package is truly the ultimate add-on for any serious sim racer, allowing them to unleash their true potential, through cues so precise, it’ll feel like the real thing!

Licensed by the FIA, D-BOX’s new generation of haptic products are ultra-realistic, incredibly precise and endlessly reliable. They combine high-fidelity motion and vibrations in a compact and easy to set up package! G5 also launches with D-BOX’s all new “adaptive gaming mode” allowing users to create their own haptic experience straight from the Game Center!

• Complete haptic package of BOTH vibrations and motion feedback all from the G5 system. No shakers or other devices required.
• Granular, subtle feedback perfected by working with professional drivers and the FIA that translates into precise cues such as traction loss, to create an extremely realistic and immersive haptic experience.
• Feedback easily tailored to your exact likings in our Game Center, where you can toggle features and create different user profiles.
• Easy setup process from hardware to software and simple cable management.
• Access to a vast catalogue of content and games (over 90 games), with premium high-fidelity haptic feedback created in collaboration with gaming studios for ultimate realism.
• A single, smaller new processor for all 4 actuators, for a considerable space gains when mounting to any setup & significantly less wiring on installation.
• Simple RJ45 (ethernet) connections from each actuator to the processor for a much smaller and faster setup, as well as simpler manipulation if a modification in actuator setup is required.
• Instant selection of the desired voltage (110V or 230V) with simple switch for more flexibility with 2-in-1 solution. Safety mechanism in place to prevent user error.

2. Advanced Traction Loss & Sway Platform powered by D-BOX Generation 5 4250i Haptic System

Enter a whole new era of realism and precision. The Advanced Traction Loss & Sway Platform (Powered by D-BOX Motion & Haptics) is the culmination of over a year and a half of research and development from the Advanced SimRacing & D-BOX engineering teams.

• The Platform features 2 degrees of freedom (Yaw / Traction Loss & Sway)
• This product can be used as a standalone 2 degrees of freedom Motion & Haptics System, or it can be combined with a pre-installed D-BOX 4250i Generation 5 system to create a 5 degrees of freedom racing simulator. The Platform is also compatible with the D-BOX 4250i Generation 5 system.
• Racing Simulation has always been about pushing the boundaries of immersion to the maximum, and this new addition to the world of SimRacing is the absolute most perfect expression of this common desire.

Wireless Gaming Headset Specifications

• Low-latency 2.4 GHz RF connection
• Reliable range for untethered play
• Immersive virtual surround-sound support
• High-performance audio drivers
• Adaptive voice filters for noise reduction and clarity
• Detachable/flip-to-mute boom mic
• Dynamic RGB LED zones synchronized to gameplay
• Fully customizable lighting profiles
• Lightweight frame with adjustable headband
• Plush memory-foam ear cushions for long-wear comfort

PC Tray Specifications

• Heavy-gauge steel platform with black powder-coat finish
• Anti-scratch polymer feet to protect chassis profiles

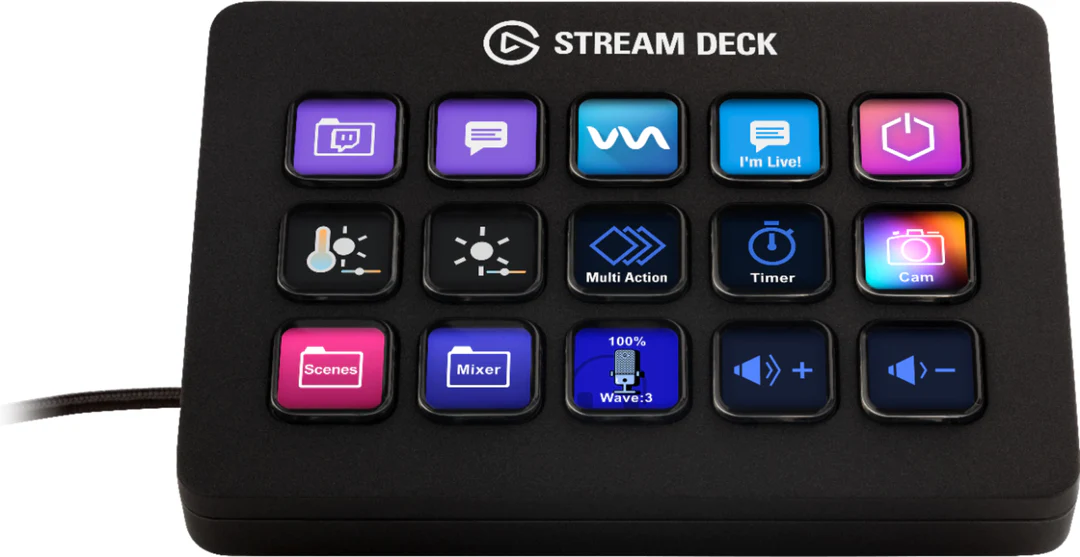

Stream Deck Specifications

A customizable control panel that brings every essential sim command right to your fingertips. With dedicated LCD keys, you can launch games, adjust in-car settings, trigger macros, and open applications or websites instantly—no more digging through menus. P1 configuration ensures your icons match your favorite titles and cockpit controls for a truly integrated experience.

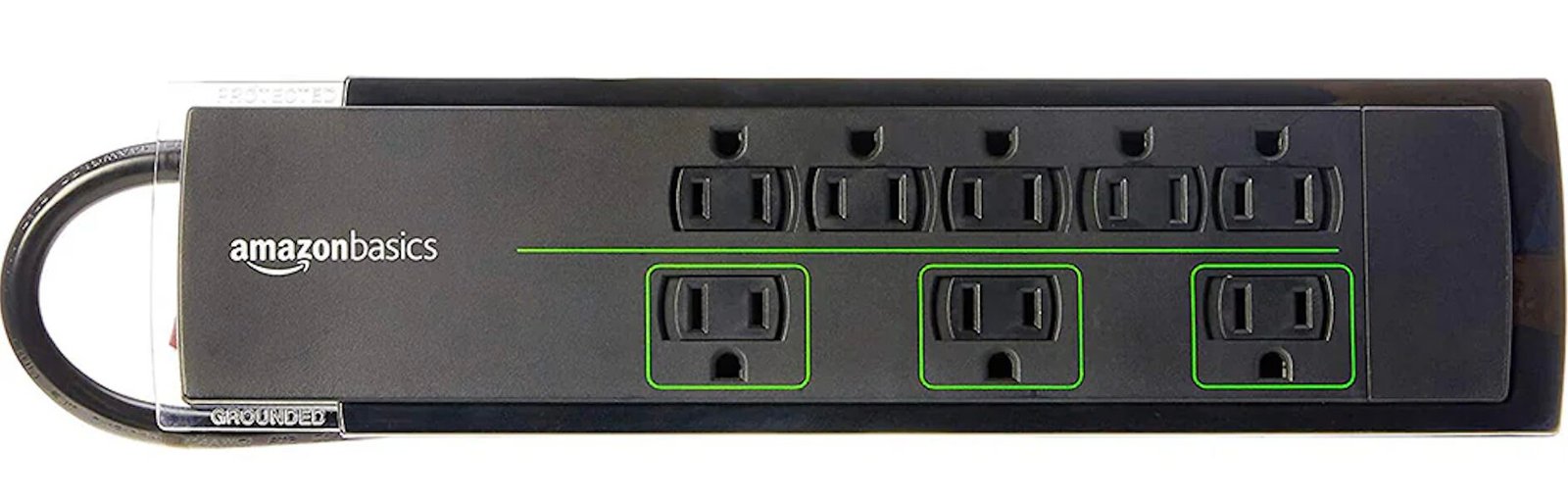

Dual Surge Protectors and Cable Management Specifications

Everything needed down to the surger protectors. Literally just two plugs to plug into one outlet and you’re ready to get racing.

Built by MAXWELL

Your turnkey rig arrives fully assembled, optimized, and ready to race. We pre-install all the major software—iRacing, Assetto Corsa Competizione, Automobilista 2—along with essential apps like Steam, Discord, TeamViewer, Crew Chief, and more. Once everything is configured, we expertly crate your system and ship it straight to your door.

Please note: Racing sims must be tied to your personal account, so you’ll need to purchase and log in to those software yourself. Don’t worry—we’ll guide you step-by-step through the activation process!
